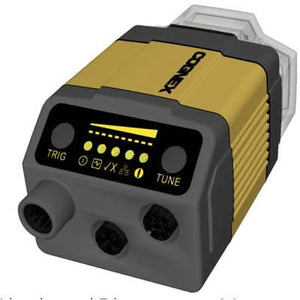

Cognex DMR-302QL-00 DataMan 300-Series 1D/2D Fixed-Mount Barcode Reader
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
1D / 2D Fixed-mount barcode reader / scanner (1.3Mpixel) - Cognex (DataMan 300 series DM 302QL) - 1280x1024 pixels resolution (1/1.8" CMOS sensing; global shutter) - 60fps - C-mount type / S-mount type - 1 x digital input (12-28Vdc / trigger input) + 1 x digital input (12-28Vdc / discrete input) + 2 x digital outputs (26.4Vdc 50mA Sink/Source / discrete outputs) - 8-pin M12 connector (Ethernet) + 12-pin M12 connector (supply) + 5-pin M12 connector - Supply voltage 24Vdc - with RS-232 + Ethernet communication capability - IP65 - Aluminium - compatible with 1DMax
Specifications
Model Number: DMR-302QL-00
Brand: Cognex
Alt Part Number(s): DMR-302QL-00
Product Type: Barcode Reader
Technical Description
Brand: Cognex
Model: DMR-302QL-00
Product series: DataMan 300 series
Pixel count: 1280x1024 pixels
Communication protocol: RS-232 , Ethernet
Technology used in component: 1/1.8" CMOS sensing; global shutter
Digital inputs: 1 x digital input (12-28Vdc / trigger input) , 1 x digital input (12-28Vdc / discrete input)
Digital outputs: 2 x digital outputs (26.4Vdc 50mA Sink/Source / discrete outputs)
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Mounting mode: C-mount type / S-mount type
Height: 1.65 In
Width: 2.12 In
Depth: 3.30 In
*
