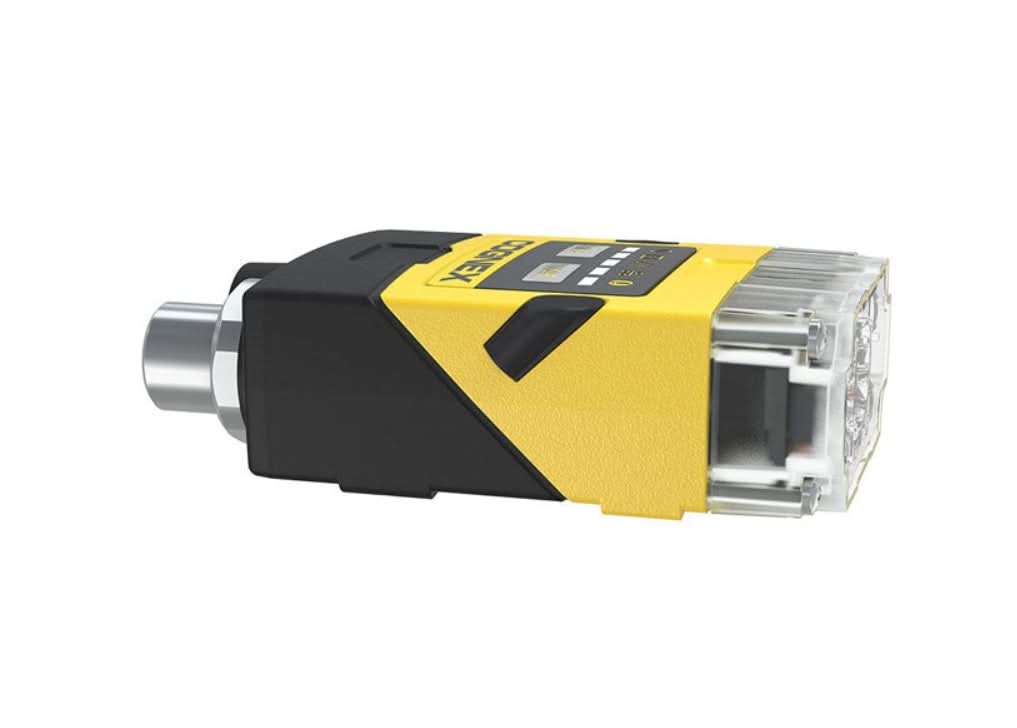

Cognex DMR-262QL-0120 DataMan 260-Series Fixed-Mount ID Barcode Reader
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
Achieve the highest possible read rate with the DataMan 260 Series fixed-mount barcode readers. The image-based barcode readers deliver unprecedented performance, flexibility and ease-of-use for 1D linear barcodes, high-density 2D matrix codes or direct part mark codes. Designed with the technology to decode damaged or poorly printed barcodes. Offering straight or right-angled configurations to fit into the tightest of spaces making installation simple.
Specifications
Model Number: DMR-262QL-0120
Brand: Cognex
Alt Part Number(s): DMR-262QL-0120
Product Type: Barcode Reader
Technical Description
Brand: Cognex
Model: DMR-262QL-0120
Product series: DataMan 260 series
Pixel count: 1280x960 pixels
Sub-range name: DM 262QL
Supply voltage (DC): 24Vdc
Sensing distance: 50-200mm
Communication protocol: RS-232, Ethernet
Connection type: 12-pin M12 male connector (Ethernet), 8-pin M12 female connector (Supply)
Technology used in component: 1/3" CMOS sensing; global shutter green aimers x 2
Digital inputs: 1 x digital input (12-28Vdc / trigger input) , 1 x digital input (8-24Vdc / opto-coupler)
Digital outputs: 4 x digital outputs (28Vdc 50mA Sink/Source / opto-coupler; isolated discrete outputs)
Mounting mode: S-mount type
Height: 0.86"
Width: 1.67"
Depth: 2.99"
*
