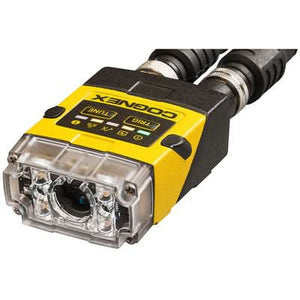

Cognex DMR-150QL-0110 DataMan 150-Series 1D Fixed-Mount Barcode Reader

Overiview

Cognex's DataMan 150 Series of fixed-mount barcode scanners can achieve the highest possible read rates thanks to a high-speed, dual core processing engine that runs the latest Cognex algorithms. Simplify installation in tight spaces with the straight or right-angled configurations to fit into even the tightest of spaces.



Specifications

Model Number:  DMR-150QL-0110

Brand:  Cognex

Alt Part Number(s):  DMR-150QL-0110

Product Type:  Barcode Reader



Technical Description

Brand:  Cognex

Model:  DMR-150QL-0110

Product series:  DataMan 150 series

Pixel count:  752x480 pixels

Communication protocol:  RS-232

Connection type:  15-pin D-Sub connector USB port

Technology used in component:  1/3" CMOS sensing; global shutter green aimers x 2

Digital inputs:  1 x digital input (15-25Vdc / trigger input) , 1 x digital input (5-24Vdc / opto-coupler)

Digital outputs:  2 x digital outputs (24Vdc 100mA / opto-coupler; isolated discrete outputs)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Mounting mode:  S-mount type

Height:  0.86 In

Width:  1.67 In

Depth:  2.16 In



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
