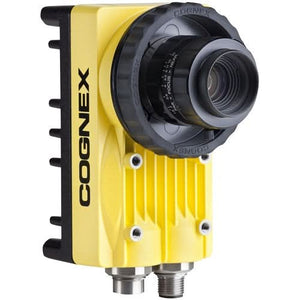

Cognex Barcode Reader Industrial Vision System In-Sight 5000 IS5610-01

Overview

Digital industrial vision camera (300Kpixel) with Gigabit Ethernet (GigE) - COGNEX (In-Sight 5000 series) - 5610 - 640x480pixels VGA resolution (1/3" CCD monochrome sensing) - 60fps - C-mount type - 128MB (program; non-volatile flash memory) + 256MB (SDRAM) - 1 x digital input (20-28Vdc Sink/Source / opto-coupler; isolated trigger input) + 2 x digital outputs (28Vdc 200mA / Sink/Source discrete outputs) - 8-pin M12 connector (Ethernet) + 8-pin M12 connector (Breakout) - Supply voltage 24Vdc - with RS-232C + Ethernet communication capability - IP67 - Aluminium (die-cast) housing



Specifications

Model Number:  IS5610-01

Brand:  Cognex

Alt Part Number(s):  IS5610-01

Product Type:  Barcode Reader



Technical Description

Brand:  Cognex

Model:  IS5610-01

Product series:  In-Sight 5000 series

Refresh Rate (fps):  60fps

Image sensor characteristics:  640x480pixels VGA resolution (1/3" CCD monochrome sensing)

Connection type:  8-pin M12 connector (Ethernet) ; 8-pin M12 connector (Breakout)

Digital Inputs:  1 x digital input (20-28Vdc Sink/Source / opto-coupler; isolated trigger input)

Digital Outputs:  2 x digital outputs (28Vdc 200mA / Sink/Source discrete outputs)

Communication protocol:  RS-232C ; Ethernet

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Mounting mode:  C-mount type

Height:  2.36 In

Width:  2.41 In

Depth:  4.88 In



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
