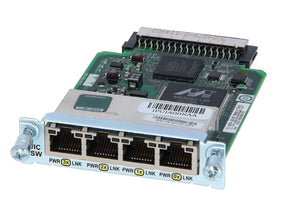

Cisco Systems, Inc HWIC-4ESW= 4-port 10/100 Ethernet Switch Hwic

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom

Overview

The 4-port Cisco EtherSwitch 10/100 high-speed WAN interface card (HWIC) supported on the Cisco 1800 (modular), Cisco 2800, and Cisco 3800 series integrated services routers offer small-to-large-size businesses and enterprise branch office customers the option to integrate switching and routing in one device. This combination offers ease of configuration, deployment, and management while using the powerful characteristics of Cisco routing and Cisco Catalyst switching features.

HWIC-4ESW= Product Overview

Technical Information

Application/Usage: Wide Area Network

Interfaces/Ports

Interfaces/Ports: 4 x 10/100Base-TX
Interfaces/Ports Details: 4 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X

Media & Performance

Connectivity Media: Category 3 UTP 10Base-T
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 5 UTP 10/100Base-TX
Data Transfer Rate: 10 Mbps Ethernet Half/Full-duplex
Data Transfer Rate: 100 Mbps Fast Ethernet Half/Full-duplex

Management & Protocols

Management:
- SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management
- Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
- Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer
- Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device
- Virtual LAN
Protocols: TCP/IP
Protocols: SNMP v1
Protocols: SNMPv2
Protocols: SNMPv3
Protocols: Telnet
Protocols: RMON
Protocols: TFTP
Protocols: IGMP
Protocols: NTP
Protocols: STP
Protocols: VTP
Protocols: CDPv1
Protocols: CDPv2
Protocols: PPP
Protocols: EAP
Protocols: OSPF
Protocols: HSRP
Security Features: 802.1X Port-based Network Access Control

Controls/Indicators

Status Indicators:
- Link status
- Inline power

Environmental Conditions

Temperature:
Temperature:
Humidity: 10% to 85% Non-condensing Operating
Humidity: 5% to 95% Non-condensing Non-operating

Physical Characteristics

Dimensions: 0.8" Height x 3.1" Width x 4.7" Depth
Weight (Approximate): 2.79 oz

Miscellaneous

Additional Information:
System Requirements:
Supported Platforms & Minimum IOS Versions:
- 3845 - 12.3(11)T
- 3825 - 12.3(11)T
- 2801 - 12.3(8)T
- 2811 - 12.3(8)T
- 2821 - 12.3(8)T
- 2851 - 12.3(8)T
- 1841 - 12.3(8)T
Compatibility:
Supported Platforms:
- 1841
- 2801
- 2811
- 2821
- 2851
- 3825
- 3845
Certifications & Standards:
- IEEE 802.3: 10BASE-T Ethernet
- IEEE 802.3u: 100BASE-TX Fast Ethernet
- IEEE 802.1d: Spanning Tree Protocol
- IEEE 802.1p: CoS for Traffic Prioritization
- IEEE 802.1q: VLAN
- IEEE 802.1x: Security
- IEEE 802.3x: Full Duplex and Flow Control
RFC:
- RFC 2284, PPP Extensible Authentication Protocol (EAP)
MIBs:
- RFC 1213 IF MIB
- RFC 2037 ENTITY MIB
- CISCO-CDP-MIB
- CISCO-IMAGE-MIB
- CISCO-FLASH-MIB
- OLD-CISCO-CHASSIS-MIB
- CISCO-VTP-MIB
- CISCO-HSRP-MIB
- OLD-CISCO-TS-MIB
- CISCO-ENTITY-ASSET-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- BRIDGE MIB (RFC 1493)
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB
- RMON1-MIB
- PIM-MIB
- CISCO-STP-EXTENSIONS-MIB
- OSPF MIB (RFC 1253)
- IPMROUTE-MIB
- CISCO-MEMORY-POOL-MIB
- ETHER-LIKE-MIB (RFC 1643)
- CISCO-ENTITY-FRU-CONTROL-MIB.my
- CISCO-RTTMON-MIB
- CISCO-PROCESS-MIB
- CISCO-COPS-CLIENT-MIB

Warranty

Limited Warranty: 90
