- Overview

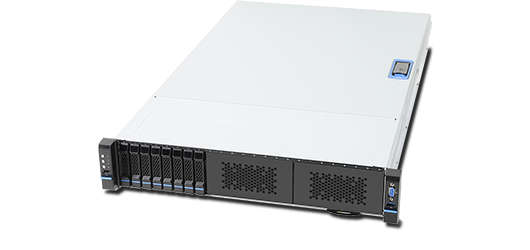

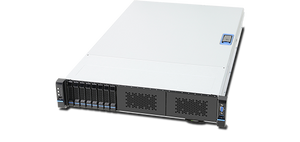

Chenbro RB23708M3WFTU2 is a server featuring an Intel S2600WFTR motherboard, Intel Xeon Scalable Cascade Lake processor support up to 165W TDP, Intel C624 chipset, and 24 DIMM slots supporting ECC DDR4 memory up to 2666 MHz. It supports multiple hot-swap drive configurations, redundant 1+1 800W CRPS power supplies, 10GbE networking, IPMI and Redfish management, and versatile Gen3 PCIe expansion options.
Specifications
Model Number: RB23708M3WFTU2
Brand: Chenbro
Alt Part Number(s): RB23708M3WFTU2
Product Type: Server
Technical Description
Brand: Chenbro
Model Number: RB23708M3WFTU2
M/B: Intel S2600WFTR
Support CPU: Intel Xeon Scalable Cascade Lake; Maximum TDP to 165W
Support Memory: 24 x DIMM Slot; UDIMM ECC DDR4 2666/2400
Chipset: Intel C624
Rear I/O: 2 x USB 3.0; 1 x VGA; 2 x 10GbE; 1 x Management Port
Front I/O: 1 x USB 3.0; 1 x USB 2.0
Drive Bay: 8 x 3.5" Hot-Swap Support; 12 x 3.5" Hot-Swap Support; 24 x 2.5" Hot-Swap Support
HDD Backplane: 12G Mini-SAS HD SAS BP; 6G SATA Compatible
PSU Form Factor: 1+1 800W CRPS Redundant
Front Control: Power On/Off; System Reset; UID; 1 x Power Status; 1 x UID; 2 x LAN Activity; 1 x HDD Status; 1 x Global Failure Alarm
System Management: ASPEED AST2500; IPMI; Redfish
Cooling Fan: Middle: 6 x 60mm Fixed Fan
Expansion Slot: 6 x PCIe x8; 2 x PCIe x4; Gen3; Or 2 x PCIe x16; 2 x PCIe x8; 2 x PCIe x4
Front Bezel: Optional Support
Item Dimension (L inch x W inch x H inch): 29 x 18 x 4
Weight: 30.00 lb
