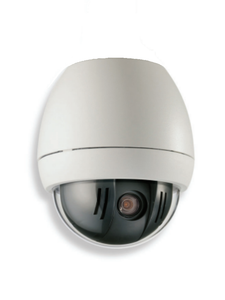

Bosch VG5-624-ECS 600-Series 36x Day-Night NTSC STD Outdoor Pendant PTZ Camera

$1,499.00 Regular price
BoschSKU: 1146379
Model Number: VG5-624-ECS
Condition: New
In stock:  Yes
No reviews

Sale price$1,499.00



The VG5-624-ECS from Bosch is an Autodome 600 Series is an easy to install PTZ camera that delivers superb video in all indoor and outdoor applications. The camera features day/night functionality for high-quality images in low light conditions. This discrete, high-speed dome camera ensures reliable, uncompromised functionality in diverse environments across various applications.



Model Number:  VG5-624-ECS

Brand:  Bosch

Alt Part Number(s):  VG5-624-ECS

Product Type:  PTZ Camera


Technical Description

Brand:  Bosch

Model:  VG5-624-ECS

Camera Signal:  Analog

Resolution:  550 TVL

Sensor Option:  1/4" CCD

Lens Type:  Motorized Zoom

Lens Size:  36X

Infrared Distance:  Non Infrared

Durability:  Weather Resistant

Mount Type:  Pendant

Voltage:  24vAC, 28vAC

Electronic Shutter:  1/1 to 1/10,000 sec., 22 steps

Image Device:  1/4 in.-type Exview HAD CCD

Image Pixels Total:  NTSC: 768 (H) x 494 (V)

Image Pixels-Effective:  Approx. 380,000

Minimum Scene Illumination:  Day ModeSensUp Off: 0.66 lux (30 IRE), 1.4 lux (50 IRE)SensUp On: 1/4s, 15x: 0.04 lux (30 IRE), 0.1 lux (50 IRE)Night ModeSensUp Off: 0.104 lux (30 IRE), 0.209 lux (50 IRE)SensUp On: 1/4s, 15x: 0.0052 lux (30 IRE), 0.0103 lux (50 IRE)

Operating Humidity:  0% to 100% relative,Condensing

Operating Temperature:  –40°C to 50°C(–40°F to 122°F)with XT kit:–60°C to 50°C(–76°F to 122°F)

Power Consumption:  51 W / 55 VA3

S/N Ratio:  >50 dB

Signal System:  NTSC

Video Output:  1.0 Vp-p, 75 Ohm

Weatherproof:  IP66

Zoom Ratio:  36x

Synchronization:  Line-Lock (–120° to 120° verticalphase adjust) or internal crystal

Angle of View:  360° Pan & 100° Tilt

Automatic White Balance:  2000 K to 10,000 K

Auto Gain Control:  Auto/Manual/Max. (–3 dB to 28 dB, 2 dB steps)



Choice of 550 TVL 36x or 28x day/night cameras with 12x digital zoom and wide dynamic range

Progressive scan provides smooth and clear images when viewing details in a moving image

Sodium Vapor White Balance mode restores objects to their original color

AutoTrack II automated motion tracking

Advanced privacy masking

Automatic White Balance


Wide Dynamic Range

Auto Gain Control

Motion Detection Tracking
