- Overview
Overview

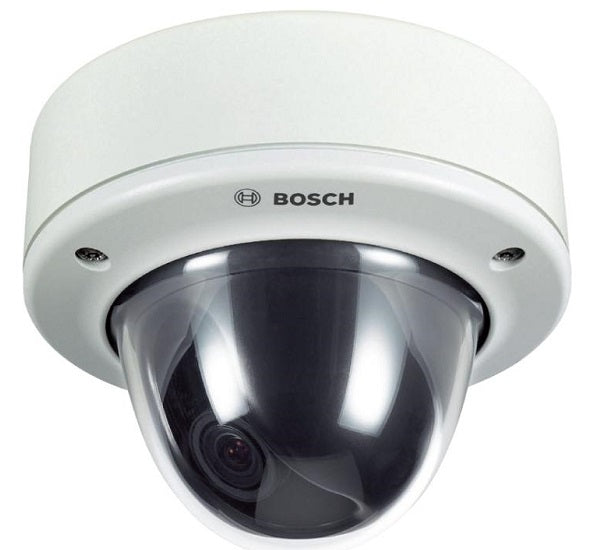

The FLEXIDOME 5000 camera is the ultimate solution for virtually any indoor or outdoor surveillance application. This vandal-resistant dome camera uses a high performance 960H 1/3-inch CCD sensor with a resolution of 720TVL. The sensor, the high dynamic range engine and the advanced image processing technology combine to provide a detailed image with outstanding accuracy in color reproduction even under harsh lighting conditions. True day/night performance ensures the highest image quality possible at any time, day or night. The camera is easy to install and ready to use, and offers the best solution for demanding scene conditions. The cast-aluminum housing, polycarbonate dome, and hardened inner liner can withstand the equivalent of 55 kg (120 lbs) of force. The enclosure contains the full-featured camera and integral varifocal lens. Ideal for outdoor use, the cameras are protected against water and dust to IP66 and NEMA Type 4X standards. The camera enclosure provides the extra protection necessary for applications such as schools, banks, prisons, parking garages, retail and industrial buildings. Installation is quick and easy, as the camera comes completely assembled and ready to use. Using the proprietary pan/tilt/rotation mechanism, installers can select the exact field of view. The camera is supplied ready to operate. Six distinct pre-programmed operational modes are stored in the camera. Recall the mode that suits your application for optimized performance.
Specifications
Model Number: VDN-5085-V321S
Brand: Bosch
Alt Part Number(s): VDN-5085-V321S
Product Type: Network Security Camera
Technical Description
Brand: Bosch
Model: VDN-5085-V321S
Camera Signal: Analog
Resolution: 720 TVL
Sensor Option: 1/3" CCD
Lens Type: Varifocal
Lens Size: 2.8-10.5mm
Image Device: 1/3" DS CCD
Image Pixels Total: 1020 x 508 (NTSC)
Image Pixels-Effective: 976 x 494 (NTSC)
Infrared Distance: Non Infrared
Durability: Vandal Resistant, Weather Resistant
Mount Type: Ceiling, Wall
Voltage: 12vDC, 24vAC, Dual Voltage
Electronic Shutter: Auto (1/50 [1/60] to 1/100000) selectable, fixed, flickerless, default
Minimum Scene Illumination: Color : 0.7 lx(0.0651 fc) , 0.13 lx(0.0121 fc) , 0.06 lx(0.00558 fc)
Operating Humidity: 5% to 93% relative humidity
OSD Menu: English, French, German, Spanish, Portuguese, Simplified Chinese, Russian
Power Consumption: 360 mA (12 VDC), 700 mA with heater on , 330 mA (24 VAC), 650 mA with heater on
Privacy Zone: 15-zone
S/N Ratio: >54 dB
Signal System: NTSC
Video Output: Composite video 1 Vpp, 75 ohm
Weatherproof: IP66
Synchronization: Internal, Line Lock
Digital Noise Reduction: 2D-NR, 3D-NR
Angle of View: Wide 101.8 x 73.7º (H x V) , Tele 27.4º x 20.6º (H x V)
Backlight Compensation: On/Off
Automatic White Balance: ATW Indoor, ATW Outdoor, ATW hold and Manual
Auto Gain Control: AGC On or Off (0 – 40 dB) selectable
Motion Detection: 4-zone
Features
Ultra high resolution 960H sensor
High Dynamic Range to see bright and dark details simultaneously
High impact, vandal-resistant, weatherproof housing
Bilinx communication for remote set-up and control
Easy to install
