Description
Overview

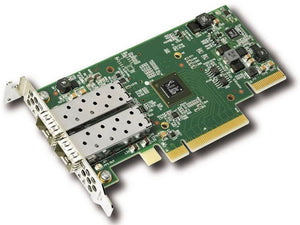

The Flareon Ultra SFN7122F Dual Port 10 GbE PCIe 3.0 Server I/O Adapter from Solarflare is a dual port 10G Ethernet SFP+ (Small Form-Factor) server adapter that delivers low latency and high message rates over standard Ethernet. It also enables low CPU utilization and power consumption, providing performance and scalability for enterprise data center environments. Featuring a set of stateless offloads, the server adapter reduces CPU processing loads for network tasks. With OpenOnload application accelerator, the adapter bypasses kernel and networking overheads, providing performance with seamless application compatibility and protocol compliance. OpenOnload features binary compatibility with all standard APIs (Application Programming Interfaces) and applications.
Specifications
Model Number: SFN7122F
Brand: Solarflare
Alt. Part Number(s): SFN7122F
Product Type: Network Adapter
Technical Description
Brand: Solarflare
Model: SFN7122F
Ports: Dual port
Input/Output Virtualization: 2048 Guest OS protected vNICs, 240 Virtual functions, 16 Physical functions
PCIe: PCI-Express 3.0 x8 @ 8.0 GT/s
SFC9120 10 G Ethernet Controller: Supports 10 GbE
SFP+ Support: Supports optical and copper SFP/SFP+ modules, Direct-Attach, fiber (10 G or 1 G), 1 G/10 G combo
1000BASE-T SFP Support: Supports 1 G 1000BASE-T SFP modules
Low Latency: Cut-through architecture/intelligent interrupt coalescing
Receive Side Scaling (RSS): Distributes IPv4, IPv6 loads across CPU cores, MSI-X minimizes interrupt overhead
Hardware Offloads: TSO, LRO, GSO, IPv4/IPv6, TCP, UDP checksums
Adapter Teaming/Link Aggregation: LACP (Link Aggregation Control Protocol) for redundant links and increased bandwidth (compatible with MLAG (Multi Link Aggregation))
Jumbo Frames: 9216 byte MTU
Tuning: Adaptive interrupt moderation
IP Flow Filtering: Hardware directs packets based on IP, TCP, UDP headers
Packet Filtering: 4096 multicast filters, 4096 VLANs/port, Adaptive TCP/UDP/IP, MAC, VLAN, RSS, RFS filtering, Accelerated Receive Flow Steering (RFS)
Intel QuickData: Uses host DMA engines to accelerate input/output
Remote Boot: PXE, iSCSI boot, Unattended installation
Management: SNMP, ACPI v3.0
Virtualization Support: VMware ESXi, Microsoft Hyper-V, XenServer, Linux KVM, SR-IOV
Power: Typical: 5.9 W
Operating Range: 32 to 149°F (0 to 65°C), 100 LFM (minimum)
Standards and Compliance: IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
RoHS compliant: Yes
Operating Systems: RHEL 5, 6, MRG, SLES 10, 11, SLERT and other Linux, Windows Server
End Bracket Height: PCIe Standard: 4.72" (11.98 cm)
PCIe Low-Profile: 3.12" (7.92 cm) (included)
Dimensions (LxW): 5.3 x 2.7" (13.4 x 6.8 cm)
