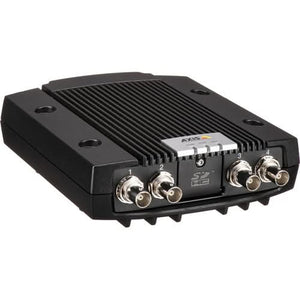

Axis Q7424-R Mk II High Performance 4-Channel H.264 Video Encoder
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overiview
AXIS Q7424-R Mk II is a high performance 1-4 channel standalone solution that enables flexible migration of analog cameras into an IP-based video surveillance system in challenging conditions. AXIS Q7424-R Mk II features a rugged design optimized to withstand vibrations, shocks and extreme temperatures. AXIS Q7424-R Mk II offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. AXIS Q7424-R Mk II supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes, using the built-in RS-422 and RS-485 serial port.
Specifications
Mfr Part Number: Q7424-R
Brand: Axis
Alt Part Number: 0742-001
Type: Video Encoder
Technical Description
Brand: Axis
Model: Q7424-R
Product Name: Q7424-R MkII Video Encoder
Maximum Resolution: 1536 x 1152
Number of Video Channels: 4
Number of Audio Channels: 1
Video Formats: H.264 , MPEG , NTSC , PAL
Compression Format: H.264, G.711, MPEG-4, MJPEG, G.726
Frame Rate: 15 fps, 25 fps, 30 fps
RAM Memory: 512 megabyte
Flash Memory: 128 megabyte
Network Interfaces: Ethernet 10Base-T/100Base-TX
Supported Protocols: RTP, UPnP, RTSP, DDNS, RTCP, UDP/IP, SNMP 2c, CIFS, DHCP
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Humidity Range Operating: 10 - 95% (non-condensing)
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: External
Width: 5.3 inch
Depth: 6.6 inch
Height: 1.8 inch
*
