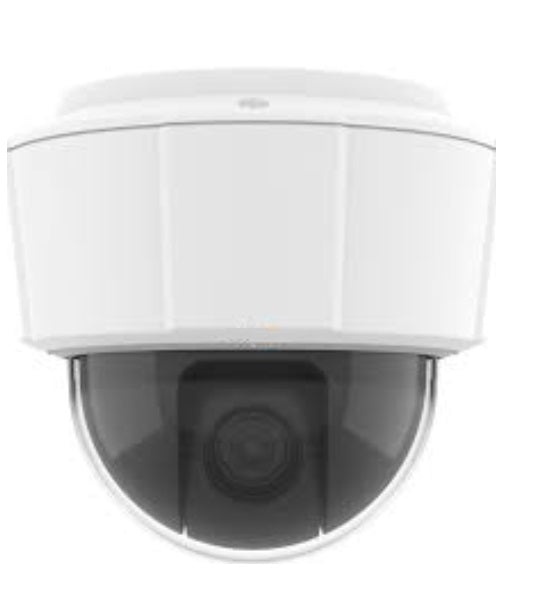

Axis P5514 / 0769-001 12X-Zoom Indoor Network PTZ Dome Camera

Overview

Axis P5514 PTZ Network Camera is a compact and affordably priced day and night pan/tilt/zoom camera for indoor use. It is suitable for surveillance applications in areas such as stores, banks, hotels, warehouses and business premises. When an optional multi-connector cable is used, AXIS P5514 supports two-way audio, audio detection, I/O ports for external devices and AC/DC power. The SD/SDHC slot enables recordings to be stored locally.



Specifications

Model Number:  P5514

Brand:  Axis

Alt Part Number(s):  0769-001

Product Type:  Dome Camera



Technical Description

Brand:  Axis

Model:  P5514

Image Device:  1/2.3” progressive scan CMOS

Resolution TVL:  1280 x 720

Zoom Ratio:  x12 Zoom

Angle of View:  Horizontal field of view: 59.2°–5.2°, Vertical field of view: 33.3°–3.1°

Electronic Shutter:  1/8000 s to 1/30 s at 60 Hz, 1/8000 s to 1/25 s at 50 Hz

Power Consumption:  6.3 W

Operating Temp oC:  0 ~ 50 C (32 ~ 122 F)

Operating Humidity %:  15 ~ 85

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Mount Type:  Ceiling, In-Ceiling, Wall



Features

HDTV 720p resolution with 12x optical zoom

360° pan with Auto-flip

Zipstream

IP52-rated protection against dust and water

Easy installation including Power over Ethernet (IEEE 802.3af)



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
