Description
Overview

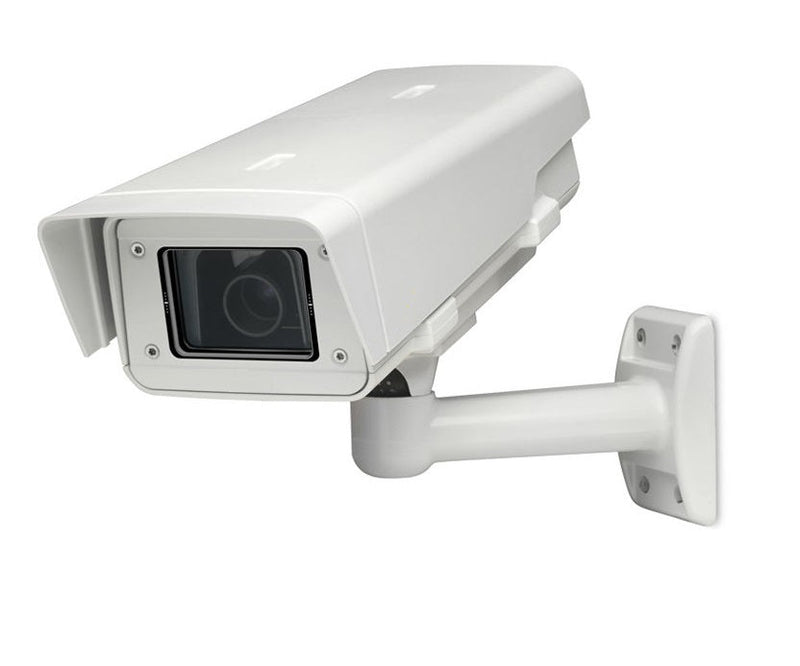

The P1354-E 1.3MP Outdoor Box Camera from AXIS Communications uses a 1/3" progressive-scan CMOS sensor for 1280 x 960 resolution at 30 fps, and it features a 2.8-8mm varifocal lens for a 80° to 34° horizontal field of view. Wide dynamic range, white balance, and backlight compensation features offer high-quality images in ambient lighting, and an external line input and output provides 2-way audio capability. The camera also comes with built-in analytics, such as motion detection, audio detection, active tampering alarm, autotracking, and line crossing. When any of these events occur, the camera will send you an email notification or store video recordings of the event to your edge storage. The camera compresses footage using H.264 and MJPEG formatting, maximizing your bandwidth and storage. Additionally, video can be streamed in multiple individual streams, and frame rates and bandwidth are controllable for further customizing your network. A microSD slot supports on-site recording, however, the camera can also record remotely to a dedicated NAS. The network is secured with a number of safety features, including password protection, IP address filtering, and HTTPs encryption. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is IP66- and NEMA 4X-rated weatherproof and IK10-rated impact-resistant for use outdoors and in high-risk areas.
Specifications
Model Number: P1354-E
Brand: Axis
Alt Part Number(s): 0528-001
Type: Network Security Camera
Technical Description
Brand: Axis
Model: P1354-E
Outdoor models: 1 MP/720p HDTV, Lightfinder
Image sensor: Progressive scan RGB CMOS 1/3”
Lens: Varifocal 2.8 - 8 mm: 80° - 34° view, F1.2
Day and night: Automatically removable infrared-cut filter
Minimum illumination: Color: 0.1 lux, F1.2, B/W: 0.02 lux, F1.2
Shutter time: Power line frequency 50 Hz: 1/24500 s to 2 s, Power line frequency 60 Hz: 1/29500 s to 2 s
Video compression: H.264 (MPEG-4 Part 10/AVC), H.264 Baseline and Main Profile, Motion JPEG
Resolutions: 1280x960* (approx. 1.3 MP) to 160x90
Frame rate H.264/Motion JPEG: 25/30 fps with power line frequency 50/60 Hz
Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth VBR/CBR H.264
Multi-view streaming: Up to 8 individually cropped out view areas.
Image settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, WDR - dynamic contrast Text and image overlay, privacy mask, mirroring of images, AXIS P1353/P1354/P1355/P1357: Rotation: 0°, 90°, 180°, 270° including Corridor Format
Audio streaming: Two-way, full duplex
Audio compression: AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Configurable bit rate
Audio input/output: External microphone, input or line input, line output. AXIS P1353/P1354/P1355/P1357: Built-in microphone (can be disabled)
Security: Password protection, IP address filtering, HTTPS encryption**, IEEE 802.1X network access control**, digest authentication, user access log
Supported Protocols: IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface: Open API for software integration, Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection, Support for AXIS Camera Companion
Intelligent video: Video motion detection, active tampering alarm, audio detection, Support for AXIS Camera Application Platform enabling installation of additional applications
Event triggers: Intelligent video, external input, audio level, time scheduled, edge storage events
Event actions: File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; pre- and post-alarm video buffering; video and audio recording to edge storage; PTZ preset; guard tour; play audio clip; day/night switching; status LED activation
Data Streaming: Event data
Built-in installation aids: Focus assistant, remote back focus, pixel counter
Casing Material: IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure. Color: white NCS S 1002-B
Memory: 256 MB RAM, 128 MB Flash
Power: Power over Ethernet (PoE) IEEE 802.3af max. 12.95 W or High PoE max 25.5 W
Connectors: RJ45 10BASE-T/100BASE-TX PoE IO: 4-pin 2.50 mm terminal block, for 1 alarm input and 1 output, RS-485/422, 2 pcs, 2 pos, full duplex, terminal block, DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out, DC-iris connector
Edge storage: MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included). Support for recording to network share (network-attached storage or file server)
Approvals: EN 50121-4/IEC 62236, IEC 60529 IP66, NEMA 250 Type 4X, EN 60950-22, IEC 62262, IK10, IEC60950-22, UL60950-22, IEC 60068-2-6, IEC 60068-2-27
Features
1280 x 960 resolution at 30 fps for clear, high quality video
2.8-8mm varifocal lens, with an f/1.2 aperture, for a 80° to 34° horizontal FOV
External line input and output for 2-way audio capability
Multiple, individually configurable streams in H.264 and MJPEG formatting
Controllable frame rate and bandwidth (VBR/CBR H.264)
Multiple image settings such as WDR, exposure control, and text and image overlay
Image enhancements include color, brightness, sharpness, white balance, and backlight compensation
Motion detection, line crossing, autotracking, audio detection, and active tampering alarms
Intelligent video, audio level, external inputs, and edge storage events will trigger an event alarm
When an alarm is triggered the camera will send you an email notification or save a video recording to edge storage
Network security features such as password protection, IP address filtering, and HTTPs encryption
PoE technology allows you to use one wire for both data and power
microSD slot supports microSD cards for edge storage
IP66- and NEMA 4X-rated weatherproof and IK10-rated impact-resistant casing
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
