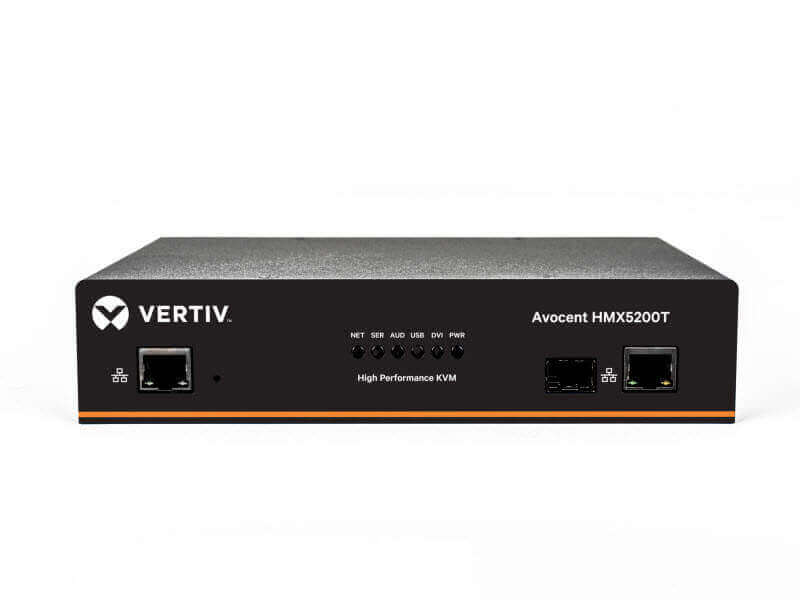

Avocent KVM Extender USB 2.0 TX Dual DVI-D Audio SFP High Performance HMX5200T

Overview

The Vertiv Avocent HMX5200T - IP KVM Transmitter (HMX5200T-001) is a high performance KVM Extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. It is ideal for demanding applications such as pre- and post-production editing, control rooms and collaborative environments. The KVM has hotkey capability and allows fast switching. It provides access to DVI-D video resolution of up to 1920 x 1200 @60Hz. The Vertiv Avocent HMX IP KVM System (5000-6000 series) is a high performance KVM extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. It is ideal for demanding applications that require high resolution and zero latency such as in broadcasting, sports venues, pre- and post-production editing, control rooms and collaborative environments. An IP-based KVM (keyboard, video, mouse) extender, it allows critical computing hardware to be housed remotely from the user workstation in a secure, temperature-controlled environment. It is designed to improve productivity, reduce IT costs and produce better business results. This KVM system provides powerful administrative tools and connection-management control for the network resources without compromising quality.



Specifications

Model Number:  HMX5200T

Brand:  Avocent

Alt Part Number(s):  HMX5200T

Product Type:  KVM Extender



Technical Description

Brand:  Avocent

Model:  HMX5200T

Max Resolution:  1920 x 1200 @ 60 Hz

Networking Connectivity Technology:  Wired

Interfaces:  1 x USB 2.0 - Type B 1 x DVI-D x 2 1 x audio (output) - mini jack female 1 x - RJ-45 female 1 x audio (input) - mini jack female 1 x RS-232 - DB-9 1 x - SFP

Voltage Required:  AC 120/230 V (50/60 Hz)

Power Consumption Operational:  20 Watt

Min Operating Temperature:  32 °F

Max Operating Temperature:  104 °F

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  External - 1U

Depth:  5.91 in

Height:  1.73 in

Width:  7.80 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
