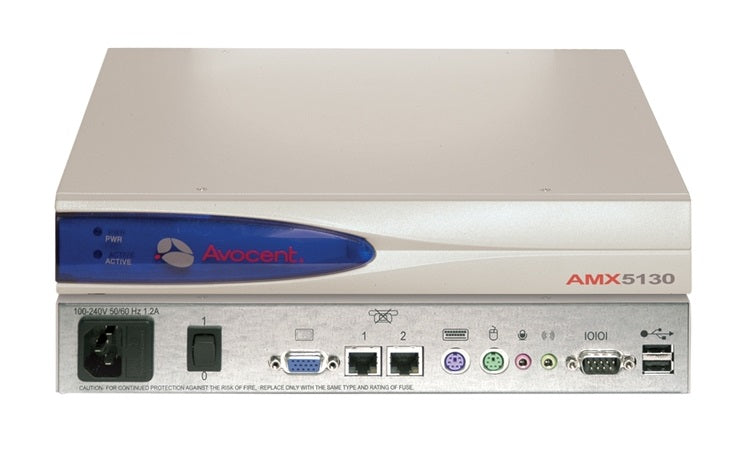

Avocent AMX5130-001 AMX Series KVM Console With Serial And Audio Capability

Overview

The AMX5130 is a desktop user station that provides a user with access to an AMX matrix switching system and a local computer. Stereo speakers, mono microphone and serial communication are supported with this enhanced model. The AMX5130 user station works with the patented OSCAR on-screen interface. OSCAR makes the system easy-to-use with mouse-driven, intuitive menus for Click and Connect system configuration and server selection.



Specifications

Model Number:  AMX5130-001

Brand:  Avocent

Alt Part Number(s):  AMX5130-001

Product Type:  KVM Console



Technical Description

Brand:  Avocent

Model:  AMX5130-001

Product Name:  Amx5130 User Station with Serial and Audio Capability

Product Series:  AMX5130

Product Type:  KVM Console

Connectivity Technology:  Wired

KVM Technology:  Analog

Number of Computers Supported:  1

Network (RJ-45):  Yes

PS / 2 Port:  Yes

USB:  Yes

VGA:  Yes

Number of VGA Ports:  1

Number of Network (RJ-45) Ports:  2

Number of PS / 2 Ports:  2

Number of USB Ports:  2

Input Voltage:  110 - 220 V AC

Maximum Video Resolution:  1600 x 1200

Rack Height:  1U

Form Factor:  Desktop

Receiver Height:  1.73"

Receiver Width:  10.98"

Receiver Depth:  11.50"



Features

Provides switching of stereo speakers and mono microphone

Provides switching of serial up to 384k

Supports connections to all AMX switches and IQs

Provides USB keyboard and mouse at any user

Ships with the AMIQ server interface module for convenient connections from PS2-based servers to the AMX switch including audio and serial

Supports multi-platform peripherals: PS/2 and USB (including PC, Mac and Sun USB keyboards)

Allows you to access and control one local computer

Provides high-quality video:

Automatically compensates for varying cable types and lengths: CAT 5, CAT 5e and CAT 6 including GigaFlex

Adjusts for skew between RGB signals each time a switch is made to a server

Offers video resolutions up to 1280 x 1024 at 1,000 feet

Works with patented OSCAR on-screen graphical interface to assist you with configuration and server selection
