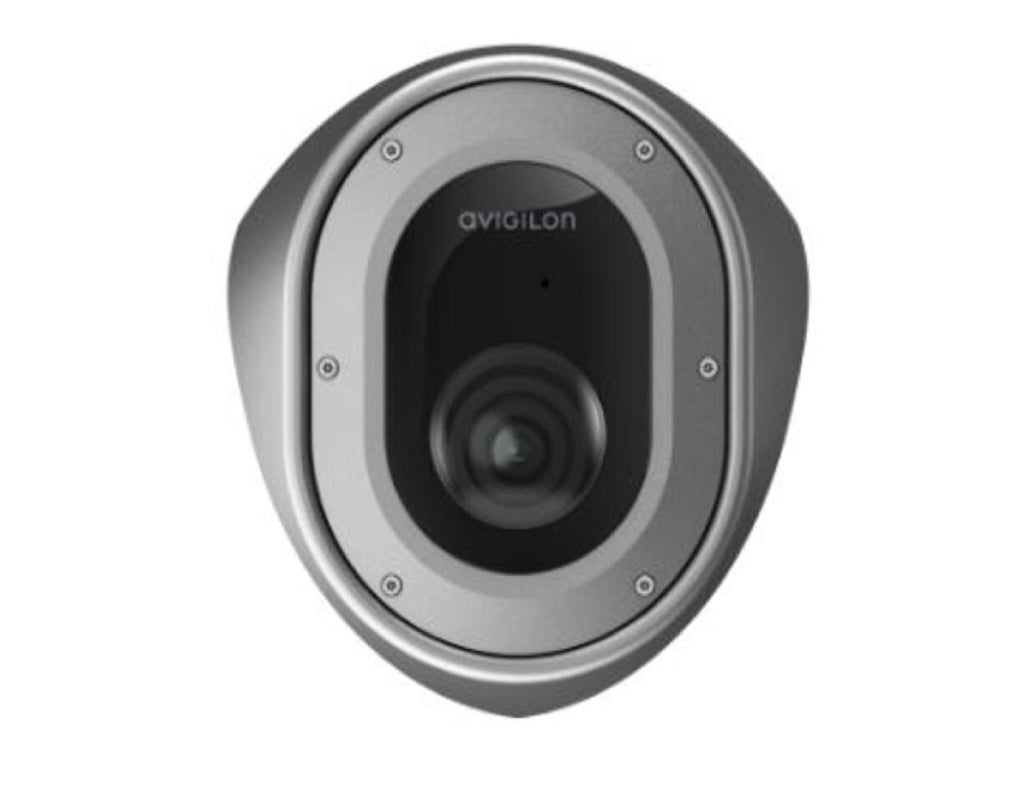

Avigilon H5A 3.0C-H5A-CR2-IR 3MP 1/2.8-inch CMOS 2.3mm Corner Mount IP Camera
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Avigilon 3.0C-H5A-CR2-IR is a high-performance 3MP anti-ligature corner mount IP camera belonging to the advanced H5A platform. Engineered specifically for high-risk, high-security facilities, it combines complete room coverage with physical security protocols and deep-learning video analytics
Specifications
Model Number: 3.0C-H5A-CR2-IR
Brand: Avigilon
Alt Part Number(s): 3.0C-H5A-CR2-IR
Product Type: Camera
Technical Description
Brand: Avigilon
Model Number: 3.0C-H5A-CR2-IR
Series: H5A
Resolution: 3MP
Image Sensor: 1/2.8-inch progressive-scan CMOS
Lens Type: Fixed lens
Focal Length: 2.3mm
Horizontal Field of View: Up to 135° (4:3); 133° (16:9)
Maximum Dynamic Range: 126 dB
IR Range: Verify installation-specific datasheet; reseller listings vary
Low-light Technology: LightCatcher
Video Analytics: Next-Generation Video Analytics
Video Compression: H.264, H.265, Motion JPEG
Network Interface: Ethernet, RJ-45
Audio: Built-in microphone; audio I/O support
Alarm I/O: Alarm input and output
Storage: microSD/microSDHC/microSDXC slot
Weather Protection: IP66 and IP67
Impact Resistance: IK10+
Power: 12 V DC, 24 V AC or IEEE 802.3af PoE
Power Consumption: Approximately 12 W DC / 13 VA AC; confirm exact configuration
Mounting: Wall Corner mounting
