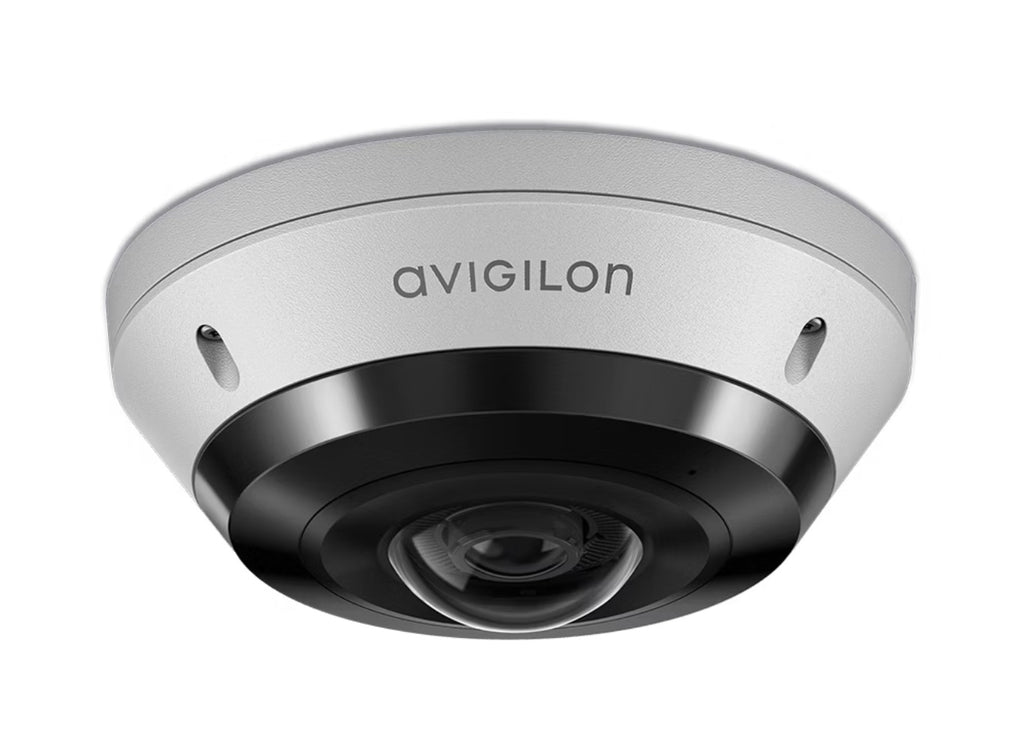

Avigilon 12.0W-H5A-FE-DO1-IR 12.0MP 1.6mm 1/2.3" CMOS Fisheye Camera
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
The 12.0W-H5A-FE-DO1-IR is the manufacturer part number for an Avigilon H5A Series 12-Megapixel Outdoor Surface Mount Fisheye Security Camera. It is designed to provide full 360-degree panoramic situational awareness with zero blind spots from a single overhead vantage point, making it popular for retail floors, large warehouses, intersections, and open enterprise spaces
Specifications
Model Number: 12.0W-H5A-FE-DO1-IR
Brand: Avigilon
Alt Part Number(s): 12.0W-H5A-FE-DO1-IR
Product Type: Camera
Technical Description
Brand: Avigilon
Model Number: 12.0W-H5A-FE-DO1-IR
Resolution: 12.0 Megapixel
Chip Inch Size: 1/2.3"
Focal Length: 1.6mm fixed lens
Image Sensor Type: CMOS
Max Image Frame Rate: 25 fps at 50Hz, 30 fps at 60Hz
Focal length: 1.6mm
Network Port: 100BASE-TX RJ45 Connector
Digital zoom: Up to 12x
Indoor/Outdoor: Outdoor
Weather Rating: IP66 and IP67 weather-proof casing
Minimum Illumination (Color): 0.38 lux
Minimum Illumination (Monochrome): 0.19 lux
Dynamic Range (WDR): Up to 120 dB
Video Compression: H.264 / H.265 HDSM SmartCodec, Motion JPEG
Mount Type: Surface Mount
Protocols: IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP
Power Consumption: 26W
