Description
| Specifications | |
| Model Number | 100-505135 |
| Brand | ATI Technologies |
| Alt. Part Number(s) | |
| Type | Video Graphic Adapter |
| Technical Description | |
| Brand | ATI Technologies |
| Model | 100-505135 |
| Interface | PCI Express x16 |
| Chipset Manufacturer | ATI |

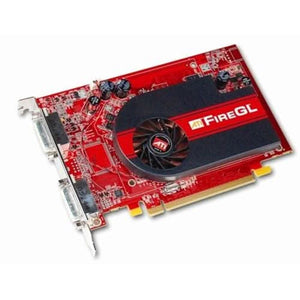

| GPU | FireGL V3300 |
| PixelPipelines | 4 |
| Memory Size | 128MB |
| Memory Type | GDDR2 |
| DirectX | DirectX 9 |
| OpenGL | OpenGL 2.0 |
| Ports DVI | 2 |
| Analog Resolution | 2048 x 1536 |
| Cooler | With Fan |
| Operating Systems Supported | |
| Windows XP, Windows XP64 and Windows 2000 | |
| Linux 32 and Linux 64 | |
| Windows Vista ready | |
| System Requirements | |
| PCI Express based workstation with available x16 lane graphics slot | |
| 350-Watt power supply or greater (assumes fully loaded system) | |
| 512MB of system memory | |
| Installation software requires CD-ROM drive | |
| Features | |
| Powered by ATI's next generation FireGL graphics processor unit (GPU) with Avivo Technology | |
| Scalable ultra-threaded architecture with 2 Parallel Geometry Engines and 4 Pixel Shader Processors | |
| Full Shader Model 3.0 support for vertex and pixel shaders | |
| High Dynamic Range (HDR) rendering with 8-bit, 10-bit, and 16-bit per RGB color component support | |
| High fidelity display engine capable of producing over one trillion colors | |
| Optimized and certified for CAD and DCC applications | |
| Direct access to ATI's dedicated workstation technical support team | |
| Overview | |
| Introducing the ATI FireGL V3300 with Avivo Technology - entry-level graphics acceleration for 3D models, large data sets, and high quality textures. The FireGL V3300 delivers industry leading features and performance for demanding workstation users running OpenGL and DirectX based applications. | |
|
* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description. |
|
