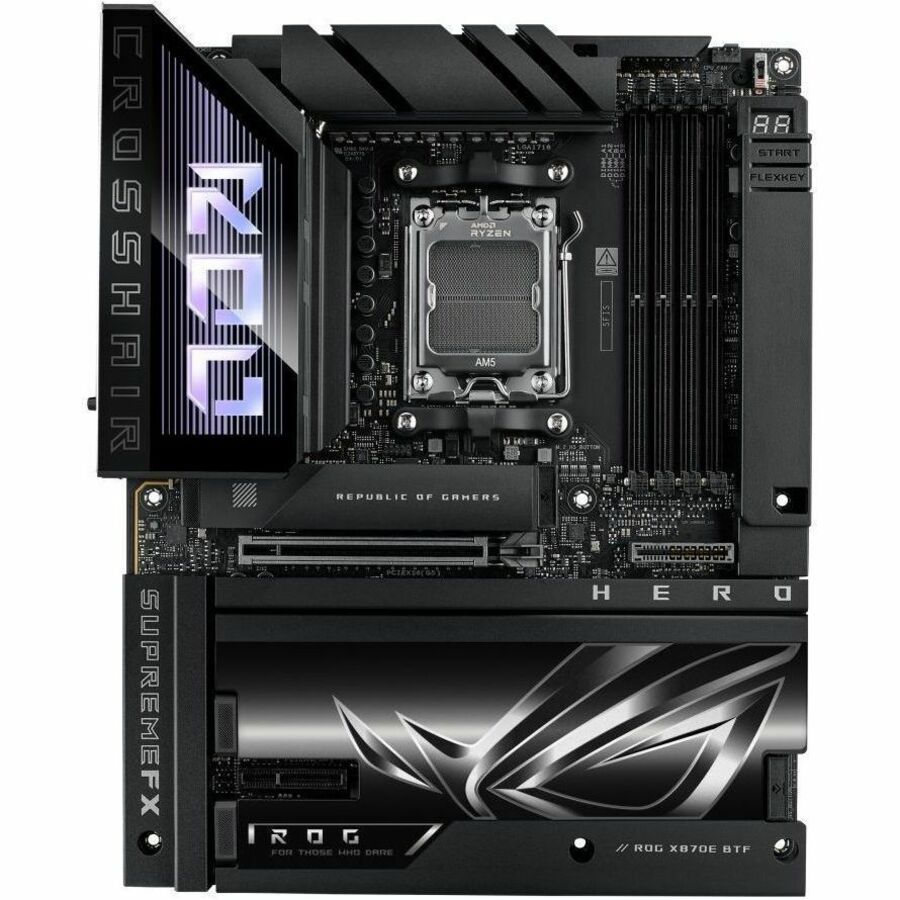

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E AM5 DDR5 ATX Motherboard

Price:
$772.00
ASUSSKU: 301955
Model Number: CROSSHAIR X870E HERO BTF
Condition: New
In stock:  No
Price:
Sale price$772.00
Get a Quote

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized ASUS Partner Reseller.



ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E AM5 DDR5 ATX Motherboard

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E AM5 DDR5 ATX Motherboard

SPECIAL ORDER ITEM

This product is available for special order and may take longer to ship.

AVAILABILITY & SHIPPING

We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.

NEED IT SOONER?

Contact us to explore expedited options or find a comparable in-stock alternative.

SPECIAL ORDER FULFILLMENT

Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.

  • Overview

ASUS CROSSHAIR X870E HERO BTF motherboard features the AMD X870E chipset, Socket AM5 support for AMD Ryzen 5, Ryzen 7, and Ryzen 9 processors, and four DDR5 memory slots supporting up to 256 GB at speeds up to 8600 MHz. It provides PCIe 5.0 and 4.0 expansion, five M.2 slots, four SATA 6 Gb/s ports with RAID 0/1/5/10 support, Wi-Fi 7, Bluetooth 5.4, Gigabit and 2.5GbE networking, 7.1-channel audio, HDMI 2.1, DisplayPort, S/PDIF, ECC memory support, and AI-powered capabilities in an ATX form factor.


Specifications

Model Number:  CROSSHAIR X870E HERO BTF

Brand:  ASUS

Alt Part Number(s):  CROSSHAIR X870E HERO BTF

Product Type:  Motherboard


Technical Description

Brand:  ASUS

Model:  CROSSHAIR X870E HERO BTF

AI-powered: Yes
Chipset Manufacturer: AMD
Chipset Model: X870E
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 5; Ryzen 7; Ryzen 9
Number of Memory Slots: 4
Memory Form Factor: DIMM; UDIMM
Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 8200 MHz; 8600 MHz; 8000 MHz
Error Checking: ECC
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0; 1; 5; 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
Total Number of Expansion Slots: 4
PCI Express Standard: PCI Express 5.0; PCI Express 4.0
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 10
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: HDMI 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 5
Total Number of Onboard USB Ports: 10
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
Brand Compatibility: AMD
Please paste the text for the next hardware component or spec sheet you would like formatted.
