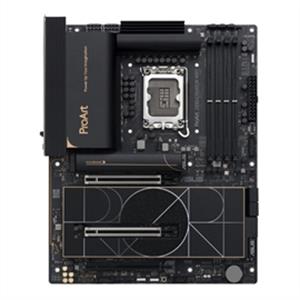

ASUS ProArt Z890-CREATOR WIFI Intel Z890 Wi-Fi 7 ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASUS MB PROART Z890-CREATOR WIFI, ProArt Series, is an ATX motherboard featuring the Intel Z890 chipset, LGA1851 support for Intel Core Ultra Series 2 processors, four DDR5 DIMM slots supporting up to 256GB and 9066+MT/s overclocked memory, two PCIe 5.0 x16 slots, five M.2 slots, dual 10Gb and 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, and Thunderbolt 5 connectivity. It also provides HDMI 2.1, DisplayPort and Thunderbolt video output, four SATA 6Gb/s ports with RAID support, Realtek 7.1-channel audio, extensive USB connectivity, UEFI BIOS, Windows 11 support, and a three-year warranty.
Specifications
Model Number: PROART Z890-CREATOR WIFI
Brand: ASUS
Alt Part Number(s): PROART Z890-CREATOR WIFI
Product Type: Motherboard
Technical Description
Brand: ASUS
Model: PROART Z890-CREATOR WIFI
CPU: Intel Core Ultra Processors (Series 2), LGA1851
Chipset: Intel Z890
Memory: 4 x DIMM; max. 256GB; DDR5; up to 9066+MT/s (OC); Non-ECC; Un-buffered; Clocked Unbuffered DIMM (CUDIMM); dual-channel; Intel XMP; ASUS AEMP III; DIMM Fit; DIMM Flex
Graphics: 1 x HDMI; 2 x Thunderbolt 5 USB Type-C with DisplayPort and Thunderbolt video output; 1 x Thunderbolt 4 USB Type-C with DisplayPort and Thunderbolt video output; up to 2 x 8K 60Hz (DSC) + 1 x 4K 60Hz with DP in; up to 1 x 8K 60Hz (DSC) + 1 x 4K 60Hz without DP in; HDMI 2.1 supports 4K 60Hz
Expansion Slots: 2 x PCIe 5.0 x16 (x16 or x8/x8); 1 x PCIe 4.0 x16 (x4)
M.2 Slots: 5 x M.2 Key M; 1 x PCIe 5.0 x4; 4 x PCIe 4.0 x4; M.2_5 supports PCIe 4.0 x4 and SATA modes
Storage: 4 x SATA 6Gb/s; Intel Rapid Storage Technology RAID 0/1/5/10; M.2 CPU-connected RAID 0/1/5
Ethernet: 1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; ASUS LANGuard
Wireless: Wi-Fi 7; 2x2 802.11be; 2.4GHz/5GHz/6GHz; 320MHz bandwidth; up to 5.8Gbps
Bluetooth: Bluetooth 5.4
USB: Rear: 2 x Thunderbolt 5 USB Type-C; 1 x USB4/Thunderbolt USB Type-C; 6 x USB 10Gbps Type-A; 1 x USB 2.0 Type-A; Front: 1 x USB 20Gbps USB Type-C; 1 x USB 5Gbps header for 2 ports; 1 x USB 2.0 header for 2 ports; USB Type-C power delivery up to 5V/3A
Audio: Realtek ALC1220P 7.1-channel Surround Sound HD Audio CODEC; 120 dB SNR stereo playback; 113 dB SNR recording; up to 32-bit/192kHz playback
Back Panel I/O: 2 x Thunderbolt 5 USB Type-C; 1 x USB4/Thunderbolt Type-C; 6 x USB 10Gbps Type-A; 1 x USB 2.0 Type-A; 1 x DisplayPort input; 1 x HDMI; 1 x Wi-Fi module; 1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; 2 x gold-plated audio jacks; 1 x BIOS FlashBack button
Internal I/O: 1 x CPU Fan; 1 x CPU OPT Fan; 1 x AIO Pump; 5 x Chassis Fan; 1 x 24-pin Main Power; 2 x 8-pin +12V CPU Power; 5 x M.2; 4 x SATA 6Gb/s; 1 x USB 20Gbps Type-C; 1 x USB 5Gbps header for 2 ports; 1 x USB 2.0 header for 2 ports; 3 x Addressable Gen2; 1 x Clear CMOS; 1 x COM Port; 1 x CPU Over Voltage; 1 x Chassis Intrusion; 1 x Front Panel Audio; 1 x SPI TPM; 1 x Front System Panel; 1 x Thermal Sensor
BIOS: 256Mb Flash ROM; UEFI AMI BIOS
Manageability: WOL by PME; PXE; ASUS Control Center Express
Operating System: Windows 11 22H2 and later
Form Factor: ATX
Dimensions: 12 x 9.6 inches; 30.5 x 24.4 cm
Item Dimensions: 15 x 12 x 4 inches
Weight: 6 lbs
Warranty: 3 years
