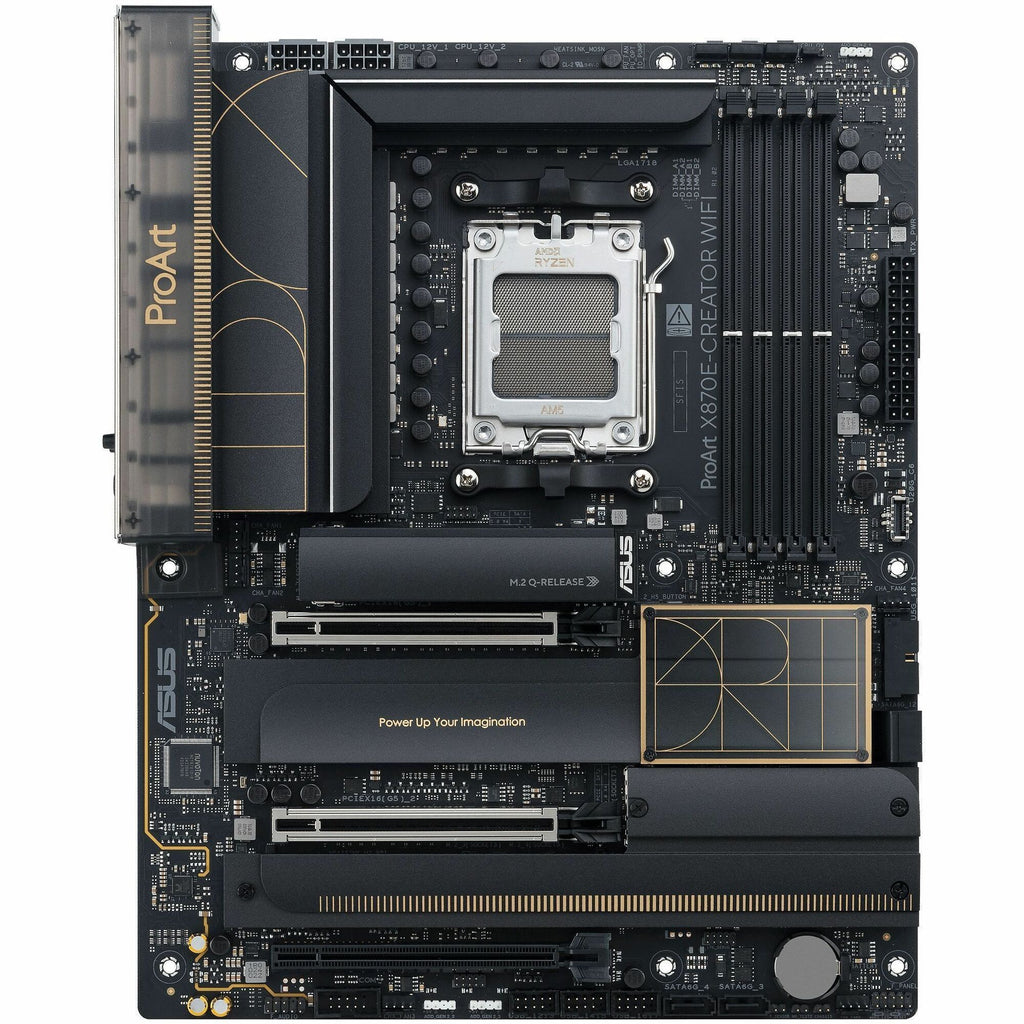

ASUS ProArt X870E-CREATOR WIFI X870E 192GB DDR5 8000MHz ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASUS PROART X870E-CREATOR WIFI X870E series ATX motherboard features AMD Socket AM5 support for Ryzen 7 and Ryzen 9 processors, DDR5 SDRAM support up to 192 GB at 8000 MHz, and five PCI Express 4.0 and 5.0 expansion slots. It includes Wi-Fi 7, Bluetooth 5.4, 10Gigabit Ethernet, 2.5Gigabit Ethernet, four M.2 interfaces, four SATA interfaces, HDMI 2.1, DisplayPort, and 7.1-channel audio with a 3-year limited warranty.
Specifications
Model Number: PROART X870E-CREATOR WIFI
Brand: ASUS
Alt Part Number(s): PROART X870E-CREATOR WIFI
Product Type: Motherboard
Technical Description
Brand: ASUS
Model: PROART X870E-CREATOR WIFI
AI-powered: Yes
Chipset Manufacturer: AMD
Chipset Model: X870E
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7; Ryzen 9
Number of Memory Slots: 4
Memory Form Factor: DIMM; UDIMM
Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 8000 MHz
Error Checking: ECC
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
Total Number of Expansion Slots: 5
PCI Express Standard: PCI Express 4.0; PCI Express 5.0
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 5
Total Number of USB Ports: 11
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 6
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents: ProArt X870E-CREATOR WIFI Gaming Desktop Motherboard; 1 x DisplayPort cable; 4 x SATA 6Gb/s cables; 1 x Thermal pad for M.2 22110; 1 x ASUS WiFi Q-Antenna; 1 x Q-connector; 1 x M.2 Q-Latch package; 1 x M.2 Q-Latch Q-Slide package for M.2 backplate; 2 x Rubber Packages for M.2; 1 x ProArt ruler; 1 x Quick start guide; 1 x ACC Express Activation Key Card
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
