Description

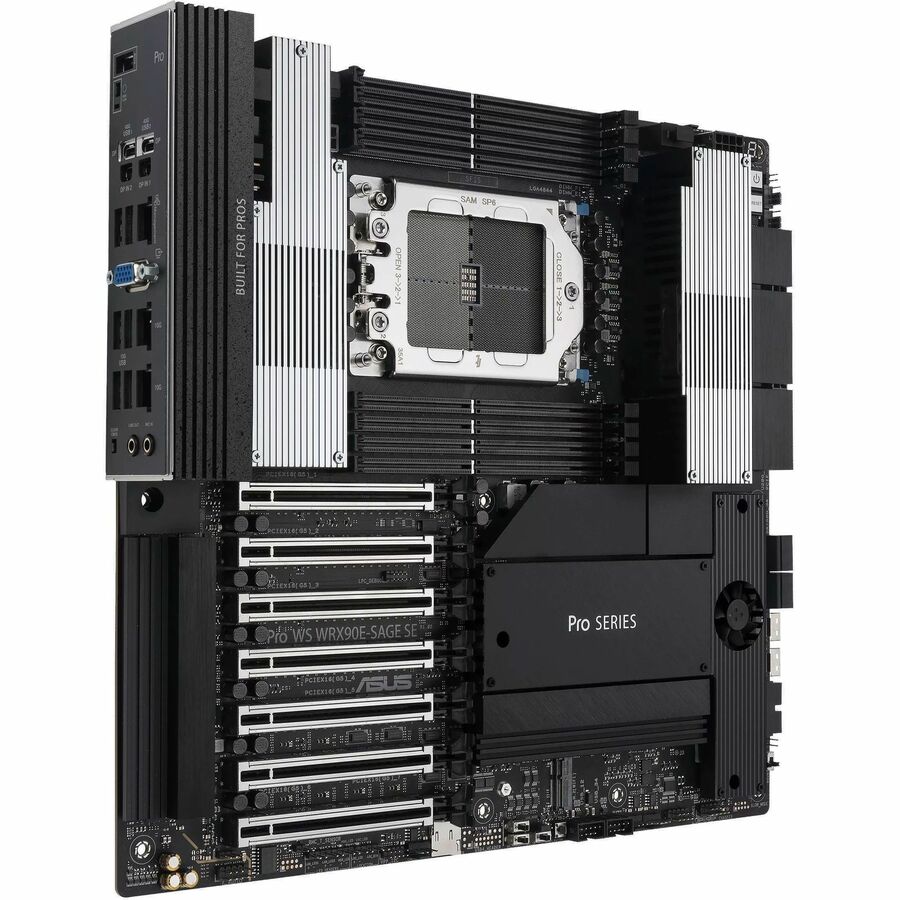

ASUS PRO WS WRX90E-SAGE SE AMD Ryzen Threadripper PRO 7000 WX-Series CEB Workstation Motherboard
AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
- AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity:Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®and SlimSAS NVMe support.
- CPU and memory overclocking:Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design:32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
- PCIe Q-release Slim:Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
-
Server-grade IPMI remot
- Ryzen Threadripper PRO processors supported for faster, dependable performance and better access to data and information
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- RAID supported levels provide data reliability and fault tolerance
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on SSI EEB workstation motherboard
Product Specification:
| Product Type: Workstation Motherboard |
| Manufacturer Part Number: PROWSWRX90ESAGESE |
| Manufacturer Website Address: http://usa.asus.com |
| Packaged Quantity: 1 |
| Form Factor: SSI EEB |
| Manufacturer: ASUS Computer International |
| Product Model: WS WRX90E-SAGE SE |
| Product Name: PRO WS WRX90E-SAGE SE Workstation Motherboard |
| Processor Supported: Ryzen Threadripper PRO |
| Raid Levels: 0,1,5,10 |
| Total Processor Supported: 1 |
| Controller Type: Serial ATA/600 |
| Product Series: PRO |
| Processor Socket: Socket sTR5 |
| Brand Name: Asus |
| Memory Technology: DDR5 SDRAM |
| Chipset Manufacturer: AMD |
| Chipset Model: WRX90 |
| Number Of Memory Slots: 8 |
| Audio Channels: 5.1 |
| Gigabit Ethernet: Yes |
| Number Of Sata Interfaces: 4 |
| Onboard Video: CPU Dependent Video |
| Raid Supported: Yes |
| Number Of Pci Express X16 Slots: 7 |
| Vga: Yes |
| Number Of Network (Rj 45) Ports: 2 |
| Displayport: Yes |
| Total Number Of Usb Ports: 9 |
| Total Number Of Onboard Usb Ports: 7 |
| Number Of Onboard Usb 2.0 Ports: 4 |
| Pci Express Standard: PCI Express 5.0 |
| Total Number Of Pci Express Slots: 7 |
| Memory Form Factor: DIMM,UDIMM |
| Total Number Of Expansion Slots: 7 |
| 10gigabit Ethernet: Yes |
| Number Of M.2 Interfaces: 4 |
| Number Of Usb4 Ports: 2 |
| Feature1: Ryzen Threadripper PRO processors supported for faster, dependable performance and better access to data and information |
| Feature2: The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance |
| Feature3: RAID supported levels provide data reliability and fault tolerance |
| Feature4: DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity |
| Feature5: Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on SSI EEB workstation motherboard |
