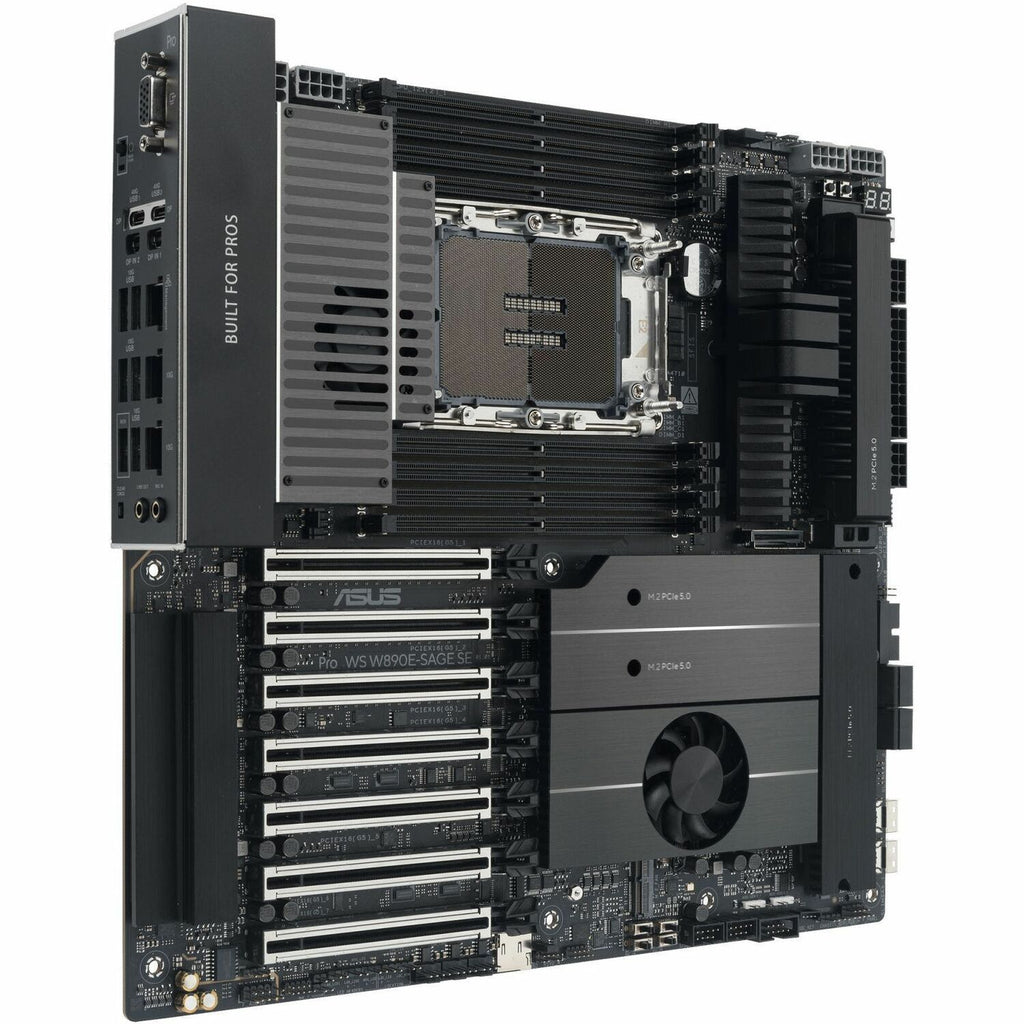

ASUS Pro WS W890E-SAGE SE Intel W890 LGA 4710-2 DDR5 4TB SSI EEB Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASUS PRO WS W890E-SAGE SE workstation motherboard features the Intel W890 chipset, Socket LGA-4710-2 support for Intel Xeon processors, and eight DDR5 ECC DIMM slots supporting up to 4 TB of memory. It provides seven PCIe 5.0 x16 slots, four M.2 interfaces, four SATA 6 Gb/s ports with RAID 0/1/5/10 support, Gigabit, 2.5GbE and 10GbE networking, VGA output, seven-channel audio, six USB 3.2 Gen 2 Type-A ports, AI-powered capabilities, and a 3-year limited warranty.
Specifications
Model Number: PRO WS W890E-SAGE SE
Brand: ASUS
Alt Part Number(s): PRO WS W890E-SAGE SE
Product Type: Motherboard
Technical Description
Brand: ASUS
Model: PRO WS W890E-SAGE SE
AI-powered: Yes
Chipset Manufacturer: Intel
Chipset Model: W890
Total Processor Supported: 1
Processor Socket: Socket LGA-4710-2
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: DIMM; UDIMM; RDIMM
Maximum Memory Supported: 4 TB
Memory Technology: DDR5 SDRAM
Intel Optane Memory Ready: No
Error Checking: ECC
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0; 1; 5; 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: No
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: No
Total Number of Expansion Slots: 7
PCI Express Standard: PCI Express 5.0
Total Number of PCI Express Slots: 7
Number of PCI Express x16 Slots: 7
Total Number of USB Ports: 8
Number of USB 3.2 Gen 2 Type-A Ports: 6
VGA: Yes
Number of Network (RJ-45) Ports: 3
Thunderbolt: No
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Form Factor: SSI EEB
Width: 13"
Depth: 12"
Brand Compatibility: Intel
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
