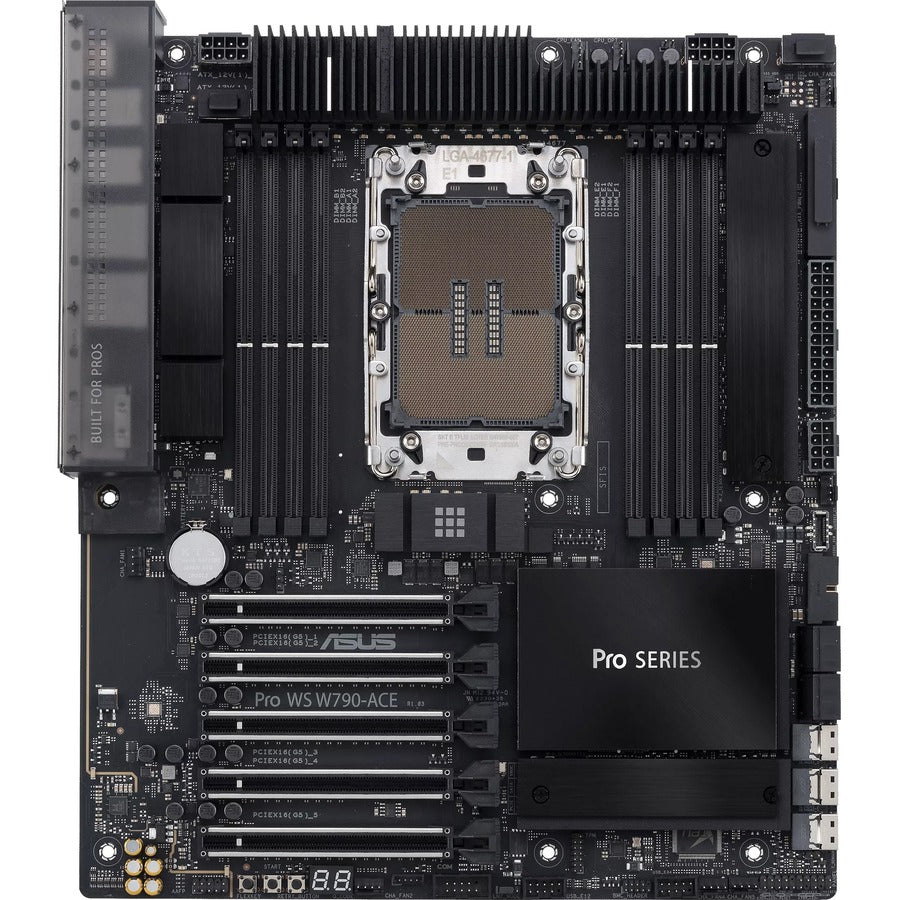

ASUS PRO WS W790-ACE Intel W790 LGA-4677 DDR5 6800MHz Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASUS PRO WS W790-ACE is a professional workstation motherboard featuring the Intel W790 chipset, LGA-4677 socket for Intel Xeon processors, eight DDR5 DIMM slots supporting up to 2 TB of memory, and PCI Express 5.0 expansion with three x16 slots. It provides 10Gigabit, 2.5Gigabit, and Gigabit Ethernet connectivity, four SATA 6Gb/s interfaces with RAID 0, 1, 5, and 10 support, two M.2 interfaces, 13 USB ports, 7.1-channel audio, and an SSI CEB form factor.
Specifications
Model Number: PRO WS W790-ACE
Brand: ASUS
Alt Part Number(s): PRO WS W790-ACE
Product Type: Motherboard
Technical Description
Brand: ASUS
Model: PRO WS W790-ACE
Chipset Manufacturer: Intel
Chipset Model: W790
Total Processor Supported: 1
Processor Socket: Socket LGA-4677
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: DIMM; UDIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 6800 MHz; 6600 MHz; 6400 MHz; 6200 MHz; 6000 MHz; 5800 MHz; 5600 MHz; 5400 MHz; 5200 MHz; 5000 MHz; 4800 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10; 1; 0; 5
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Total Number of Expansion Slots: 5
PCI Express Standard: PCI Express 5.0
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 13
Number of USB 3.2 Gen 2 Type-A Ports: 4
S/PDIF: Yes
Number of Network RJ-45 Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: SSI CEB
Width: 12.5"
Depth: 10.5"
Package Contents: PRO WS W790-ACE Desktop Motherboard; 2 x SATA 6Gb/s cables; 1 x Q-connector; 1 x M.2 Rubber Package(s); 1 x M.2 backplate Rubber Package(s); 1 x CPU guard for LGA 4677 E1A; 1 x CPU guard for LGA 4677 E1B; 1 x ACC Express Activation Key Card; 1 x User guide
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances RoHS
