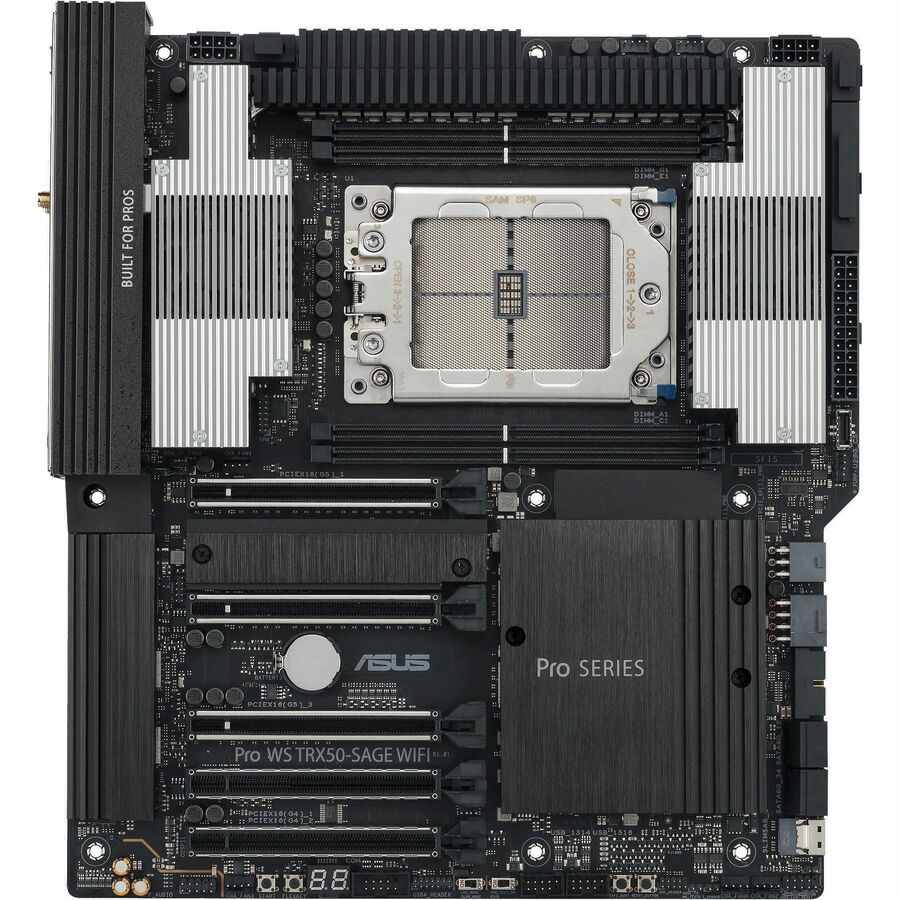

ASUS PRO WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 DDR5 Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASUS PRO WS TRX50-SAGE WIFI is a professional workstation motherboard featuring the AMD TRX50 chipset, Socket sTR5 for AMD Ryzen 7 and Ryzen Threadripper processors, four DDR5 DIMM slots, and five PCI Express slots with PCIe 5.0 and PCIe 4.0 support. It provides 10Gigabit and 2.5Gigabit Ethernet, Wi-Fi 7 with IEEE 802.11be, Bluetooth 5.4, four SATA 6Gb/s interfaces with RAID 0, 1, 5, and 10 support, three M.2 interfaces, nine USB ports, and an SSI CEB form factor.
Specifications
Model Number: PRO WS TRX50-SAGE WIFI
Brand: ASUS
Alt Part Number(s): PRO WS TRX50-SAGE WIFI
Product Type: Motherboard
Technical Description
Brand: ASUS
Model: PRO WS TRX50-SAGE WIFI
Chipset Manufacturer: AMD
Chipset Model: TRX50
Total Processor Supported: 1
Processor Socket: Socket sTR5
Processor Supported: Ryzen 7; Ryzen Threadripper
Number of Memory Slots: 4
Memory Form Factor: DIMM
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0; 1; 5; 10
Onboard Video: CPU Dependent Video
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
Total Number of Expansion Slots: 5
PCI Express Standard: PCI Express 5.0; PCI Express 4.0
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 5
Total Number of USB Ports: 9
Number of USB 2.0 Ports: 2
S/PDIF: Yes
Number of Network RJ-45 Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: SSI CEB
Width: 12"
Depth: 11"
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
