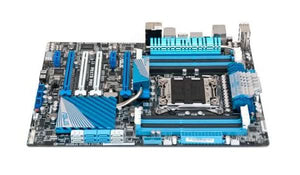

Asus 90-MIBH40-G0AAY00Z P9X79 PRO Intel X79 Express LGA-2011 ATX Motherboard

Specifications

Model Number:  90-MIBH40-G0AAY00Z

Brand:  Asus

Alt Part Number(s):  P9X79 PRO

Product Type:  Motherboard

Condition:  New Board without Accessories

Technical Description

Brand:  Asus

Model:  90-MIBH40-G0AAY00Z / P9X79 PRO

CPU:  Socket 2011 Support 2nd Generation Core i7 Processors, Supports Intel Turbo Boost Technology

Chipset:  Intel X79 Express Chipset

Memory:  8x DDR3-2400(OC)/2133(OC)/1866/1600/1333/1066 DIMMs, Quad-channel, Non-ECC, Un-buffered, Max Capacity up to 64GB

Slots:  4x PCI-Express 3.0 x16 Slots (three run at x8, Supports AMD Quad- CrossFireX and nVidia 3-Way SLI); 2x PCI-Express 2.0 x1 Slots

SATA:  4x SATA3 Ports(two Support RAID 0, 1, 5, 10), 4x SATA2 Ports, Support RAID 0, 1, 5, 10; 2x Power eSATA3 Ports

Audio:  Integrated Realtek ALC898 8-Channel High Definition Audio CODEC

LAN:  Intel 82579V Gigabit LAN controller; Bluetooth V2.1+EDR

Ports:  12x USB 2.0 Ports (6 rear, 6 at midboard); 6x USB 3.0 Ports (4 rear, 2 at midboard); 2x Power eSATA3 Ports; 1x RJ45 LAN Port; 1x Optical S/PDIF Output; 1x Bluetooth module; Audio I/O Jacks

Power Connector:  1x 24pin Main Power; 1x 8pin CPU Power

Form Factor:  ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm

Product Type:  Motherboard



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
