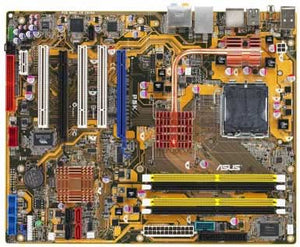

ASUS P5K Intel P35 Socket-775 Core 2 Quad DDR2 1066MHZ ATX Motherboard. Bare Board
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
P5K Desktop Board supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1333 / 1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: P35 Express
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Core 2 Extreme
- Processor Supported: Core 2 Quad
- Processor Supported: Pentium D
- Processor Supported: Pentium 4 (Extreme Edition)
- Processor Supported: Pentium Extreme Edition
- Processor Supported: Pentium 4
- Processor Supported: Celeron
- Front Side Bus: 800 MHz
- Front Side Bus: 1066 MHz
- Front Side Bus: 1333 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 8 GB
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-800/PC2-6400
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
Audio
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC 883
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 6
- Number of PCI Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 2
Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 6
- Total Number of FireWire/i.LINK Ports: 1
- Number of FireWire/i.LINK 400 Ports: 1
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- S/PDIF: Yes
- Number of S/PDIF Out Ports: 1
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 5
- Total Number of Onboard USB Ports: 3
- Total Number of Onboard FireWire/i.LINK Ports: 1
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
- Onboard S/PDIF Header: Yes
Physical Characteristics
- Width: 12.0"
- Depth: 9.6"
-
Additional Information:
The chipset officially supports the memory frequency up to DDR2 800MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR2 1066MHz
ASUS AI Lifestyle Features:
- ASUS AI Lifestyle Features:
- ASUS AI Gear2
- ASUS AI Nap
- ASUS Fanless Design: Heat-pipe solution
- ASUS Q-Fan 2
- ASUS Crystal Sound:
- ASUS Noise Filter
- ASUS EZ DIY:
-
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS AI Slot Detector
Overclocking Features:
- Intelligent overclocking tools:
- AI NOS (Non-delay Overclocking System)
- ASUS AI Booster utility
- Precision Tweaker:
- vCore: Adjustable CPU voltage at 0.0125V increment
- vDIMM: 16-step DRAM voltage control
- vChipset: 4-step Chipset voltage control
- SFS (Stepless Frequency Selection):
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tunning from 667MHz up to 1333MHz for DDR2
- PCI Express frequency tuning from 100MHz up to150MHz at 1MHz increment
- Overclocking Protection:
-
- ASUS C.P.R.(CPU Parameter Recall)
BIOS:
- 8 Mb Flash ROM
- AMI BIOS
- PnP
- DMI2.0
- WfM2.0
- SM BIOS 2.3
- ACPI 2.0a
- ASUS EZ Flash 2
- ASUS CrashFree BIOS 3
