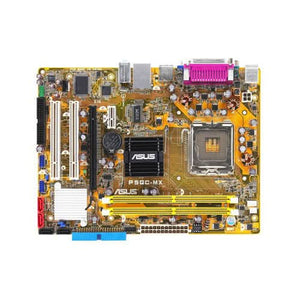

Asus P5GC-MX Chipset-Intel 945GC Socket-T LGA-775 2Gb DDR2-800MHz Motherboard

Overview

P5GC-MX with Intel 945GC chipset inside supports Intel dual-core CPU and features 800MHz FSB, PCI Express x16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5GC-MX is the most affordable all in one solution platform for Intel Core 2 Processor with Intel 945GC chipset inside.



Specifications

Model Number:  P5GC-MX

Brand:  Asus

Alt. Part Number(s):  P5GC-MX

Product Type:  Motherboard



Technical Description

Brand:  Asus

Model:  P5GC-MX

Chipset:  Intel 945GC

Total Processor Supported:  1

Processor Technology:  Hyper-Threading Technology

Processor Socket:  Socket T LGA-775

Processor Supported:  Pentium 4, Pentium 4 (Extreme Edition), Celeron, Pentium D, Core 2 Duo, Celeron D, Core 2 Extreme

Front Side Bus:  533 / 800 MHz

Memory Slots:  2

Maximum Memory:  2 GB

Memory Standard:  DDR2-400/PC2-3200, DDR2-533/PC2-4200

Memory Technology:  DDR2 SDRAM

Controller Type:  Serial ATA/300, Ultra ATA/100 (ATA-6)

Controller Type:  Floppy Controller

Onboard Video:  On-board Video Chipset

Graphics Controller:  Intel GMA 950

Sound Controller:  Realtek ALC883

Audio Channels:  5.1

Fast Ethernet:  Yes

Number of Total Expansion Slots:  4

Number of PCI Slots:  2

Total Number of PCI Express Slots:  2

Number of PCI Express x1 Slots:  1

Number of PCI Express x16 Slots:  1

Total Number of USB Ports:  4

Number of USB 2.0 Ports:  4

Parallel Port:  Yes

Serial Port:  Yes

Audio Line In:  Yes

Audio Line Out:  Yes

Microphone Port:  Yes

VGA:  Yes

Network (RJ-45):  Yes

Number of IDE Interfaces:  1

Number of SATA Interfaces:  4

Total Number of Onboard USB Ports:  2

Onboard LEDs Header:  Yes

Onboard Audio Header:  Yes

Onboard S/PDIF Header:  Yes

Width:  9.6"

Depth:  7.2"
