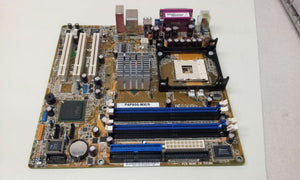

ASUS P4P800-MX Intel 865GV Socket-478 Pentium-4 DDR 400MHZ Bare Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Leveraging the Intel 865GV chipset to support 3.4GHz+ P4 CPUs on 800MHz FSB, DDR400 memory, Intel Hyper-Threading technology, next generation integrated Intel Extreme Graphics 2, and a full-range of advanced features, the P4P800-MX delivers a full-value, high-performance solution for today's most demanding tasks.
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: 865GV
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-478
- Processor Supported: Pentium 4 (Extreme Edition)
- Processor Supported: Pentium 4
- Processor Supported: Celeron
- Processor Supported: Celeron D
- Front Side Bus: 400 MHz
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: DDR266/PC2100
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR400/PC3200
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: Extreme Graphics 2
Audio
- Sound Controller Manufacturer: Analog Devices
- Sound Controller Model: AD1888 SoundMAX
- Audio Channels: 5.1
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 3
- Number of PCI Slots: 3
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Power Description
- Power Supply Supported: ATX12V
Physical Characteristics
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
Chipset:
- North Bridge: Intel 865GV
- South Bridge: Intel ICH5
Special Features:
- Support S/PDIF out interface
- ASUS MyLogo
- ASUS EZ Flash
- ASUS CrashFree BIOS 2
-
Certifications & Standards:
FCC Rules Part 15, Class B Canadian ICES-003
