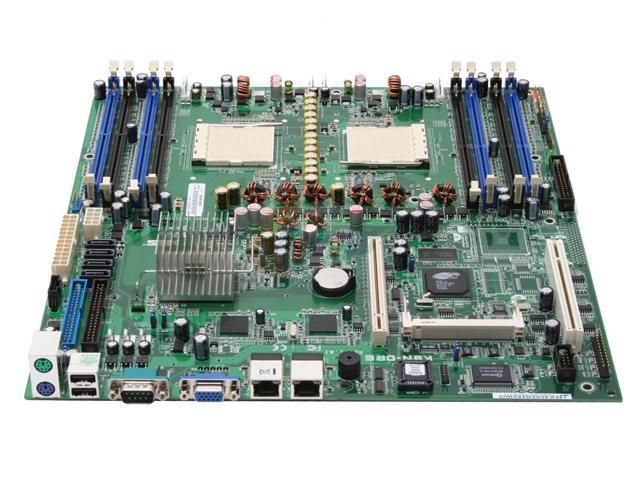

Asus K8N-DRE/SATA AMD Opteron Dual 940 Nvidia nForce 2200 16Gb E-ATX Motherboard

Specifications

Model Number:  K8N-DRE/SATA

Brand:  Asus

Alt. Part Number(s):  K8N-DRE/SATA

Product Type:  Motherboard



Technical Description

Brand:  Asus

Model:  K8N-DRE/SATA

CPU Socket Type:  Dual 940

CPU Type:  Dual AMD Opteron 200 processor / dual core

System Bus:  1000 MHz

Chipsets:  NVIDIA nForce 2200 Professional

Number of DDR Slots:  8 x 184Pin

DDR Standard:  DDR 400 (PC 3200)

DDR3 Standard:  DDR SDRAM

Maximum Memory Supported:  16GB

ECC Supported:  Yes

Registered:  Yes

PCI Express x16:  1 x PCI Express x16

PCI Slots:  1 x PCI Slot

Other Slots:  1 x mini-PCI for BMC card

PATA:  2 x ATA 133 4 Dev. Max

SATA:  4 x SATA 1.5Gb/s

SATA RAID:  0/1/0+1

SCSI:  Floppy Controller Ultra320 SCSI Serial ATA/300 Ultra ATA/133 (ATA-7)

Onboard Video Chipset:  ATI RAGE XL

Audio Chipset:  None

LAN Chipset:  Broadcom BCM5721

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Broadcom BCM5721

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

PS/2 Ports:  2

COM Ports:  1

Video Ports:  D-Sub

USB 1.1/2.0:  2 x USB 2.0

Form Factor:  Extended ATX

Dimensions (W x L):  12" x 13"



Features

On Board Connectors: 1 x FDD; 24-pin ATX power connector; 8-pin ATX 12V power connector; 10 x Fan; 6-1 pin SMBus ; 2 x Front LAN LED

Environment: Operation temperature: 10? ~ 35?; Non operation humidity: 20% ~ 90% ( Non condensing)

Most Valuable Dual Opteron HPC Server Motherboard
