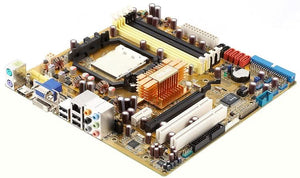

Asus M3N78-EMH AMD AM2+ NVIDIA GeForce 8200 Micro-ATX Motherboard

Specifications

Model Number:  M3N78-EMH

Brand:  Asus

Alt Part Number(s):  M3N78-EMH

Product Type:  Motherboard



Technical Description

Brand:  Asus

Model:  M3N78-EMH

Socket Type:  AM2+/AM2

CPU Type:  Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2

FSB:  2600 MHz

Chipset:  NVIDIA GeForce 8200

Number of Memory Slots:  4×240pin

Memory Standard:  DDR2 1066

Maximum Memory Supported:  8GB

Channel Supported:  Dual Channel

PCI Express 2.0 x16:  1 x PCI Express 2.0 x16

PCI Express x1:  1 x PCI Express x1

PCI Slots:  2 x PCI Slots

PATA:  1 x ATA100 2 Dev. Max

SATA 3Gb/s:  6 x SATA 3Gb/s

SATA RAID:  0/1/10

Onboard Video Chipset:  NVIDIA GeForce 8 series

Audio Channels:  8 Channels

Max LAN Speed:  10/100/1000Mbps

PS/2 Ports:  2

Video Ports:  D-Sub + DVI

HDMI Ports:  1 x HDMI

USB 1.1/2.0:  4 x USB 2.0

Audio Ports:  6 Ports

Form Factor:  Micro ATX

Power Pin:  24 Pin



Features

AMD AM2+ Quad-Core CPU/AM2 CPU Support

NVIDIA GeForce 8200 Chipset

Hybrid SLI Support

HyperTransport 3.0 and PCIe 2.0 Ready

HDMI/Full HD Support

Smooth Blu-ray / HD DVD Playback

Multi Displays Support

DX10 Support
