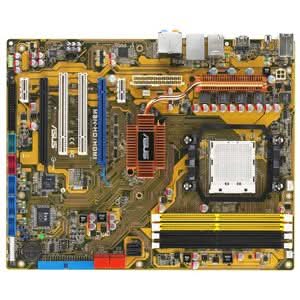

Asus M3N-HD NVidia NForCE 750A SLI Socket-AM2 /AM2 PHENoM Quad Core DDR2 ATX Bareboard

Processor & Chipset

• Chipset Manufacturer:     NVIDIA
• Chipset Model:     nForce 750a SLI
• Total Processor Supported:     1
• Processor Technology:     HyperTransport Technology
• Processor Socket:     Socket AM2+ PGA-940
• Processor Supported:     Phenom FX
• Processor Supported:     Phenom
• Processor Supported:     Athlon
• Processor Supported:     Sempron
• HyperTransport Speed:     2600 MHz
• HyperTransport Speed:     1000 MHz
• HyperTransport Speed:     800 MHz

Memory

• Number of Memory Slots:     4
• Maximum Memory:     8 GB
• Memory Standard:     DDR2-800/PC2-6400
• Memory Standard:     DDR2-667/PC2-5300
• Memory Technology:     DDR2 SDRAM

I/O Controller

• Controller Type:     Floppy Controller
• Controller Type:     Serial ATA/300
• Controller Type:     Ultra ATA/133 (ATA-7)
• RAID Supported:     Yes
• RAID Levels:     0
• RAID Levels:     1
• RAID Levels:     0+1
• RAID Levels:     5
• RAID Levels:     JBOD

Audio

• Sound Controller Manufacturer:     Realtek
• Sound Controller Model:     ALC1200
• Audio Channels:     7.1

Network & Communication

• Gigabit Ethernet:     Yes

I/O Expansions

• Number of Total Expansion Slots:     7
• Number of PCI Slots:     3
• Total Number of PCI Express Slots:     4
• Number of PCI Express x1 Slots:     2
• Number of PCI Express x16 Slots:     2

Interfaces/Ports

• Total Number of USB Ports:     6
• Number of USB 2.0 Ports:     6
• Total Number of FireWire/i.LINK Ports:     1
• Number of FireWire/i.LINK 400 Ports:     1
• Audio Line In:     Yes
• Audio Line Out:     Yes
• Microphone Port:     Yes
• S/PDIF:     Yes
• Number of S/PDIF Out Ports:     1
• HDMI:     Yes
• Number of HDMI Outputs:     1
• Network (RJ-45):     Yes

Onboard Interfaces

• Number of IDE Interfaces:     1
• Number of SATA Interfaces:     6
• Total Number of Onboard USB Ports:     3
• Onboard LEDs Header:     Yes
• Onboard Audio Header:     Yes
• Onboard S/PDIF Header:     Yes

Physical Characteristics

• Form Factor:     ATX
• Width:     12.0"
• Depth:     9.6"

Miscellaneous

• Additional Information:
• Green Compliant:     Yes
• Green Compliance Certificate/Authority:     RoHS

Warranty

• Limited Warranty:     3 Year
