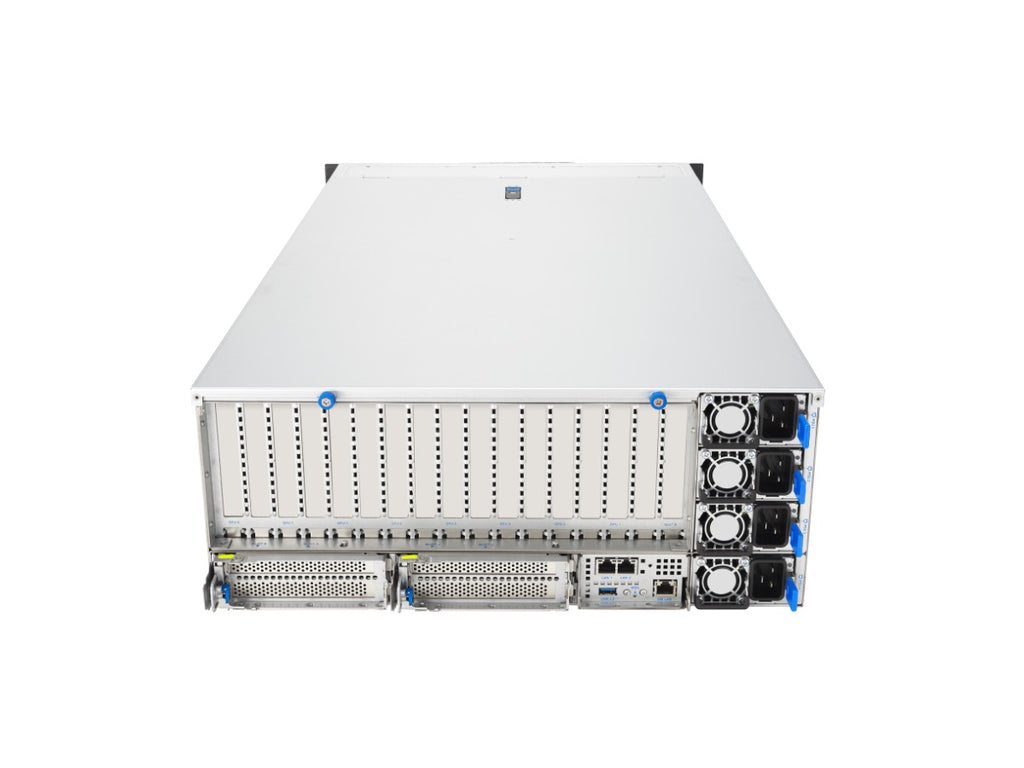

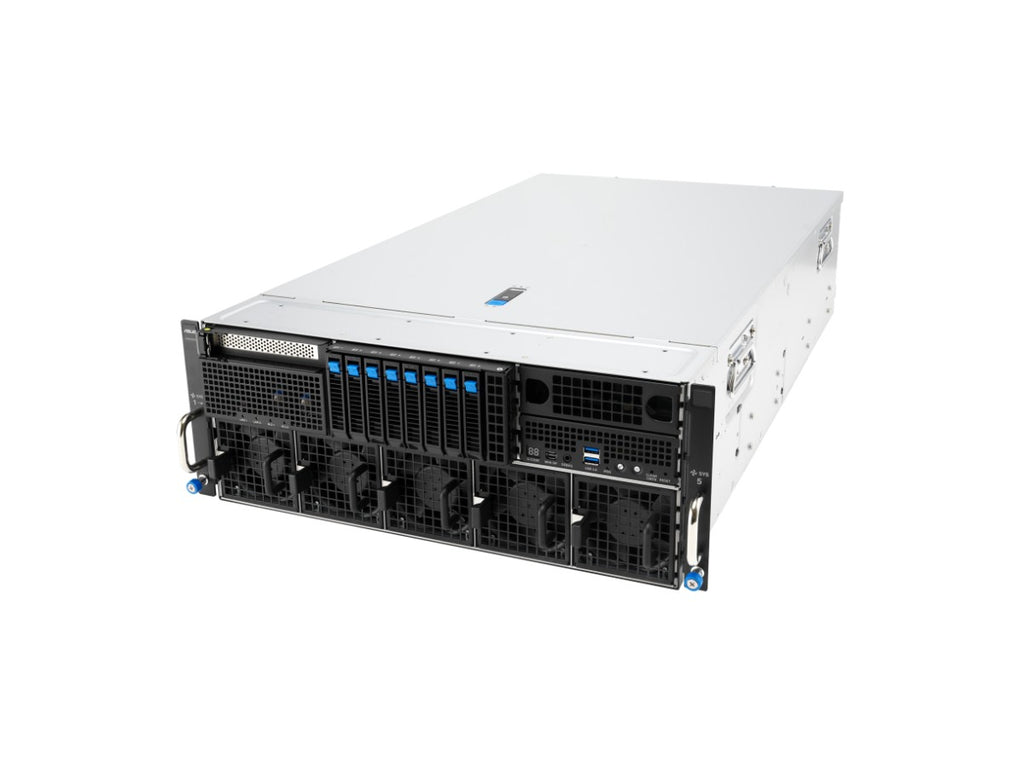

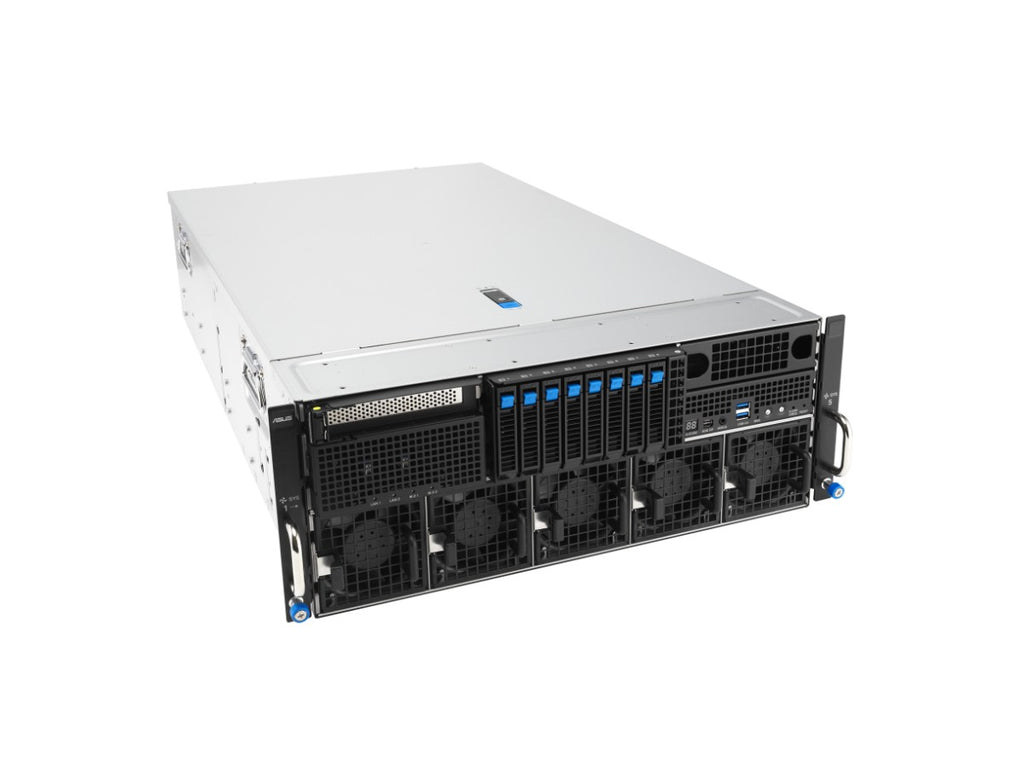

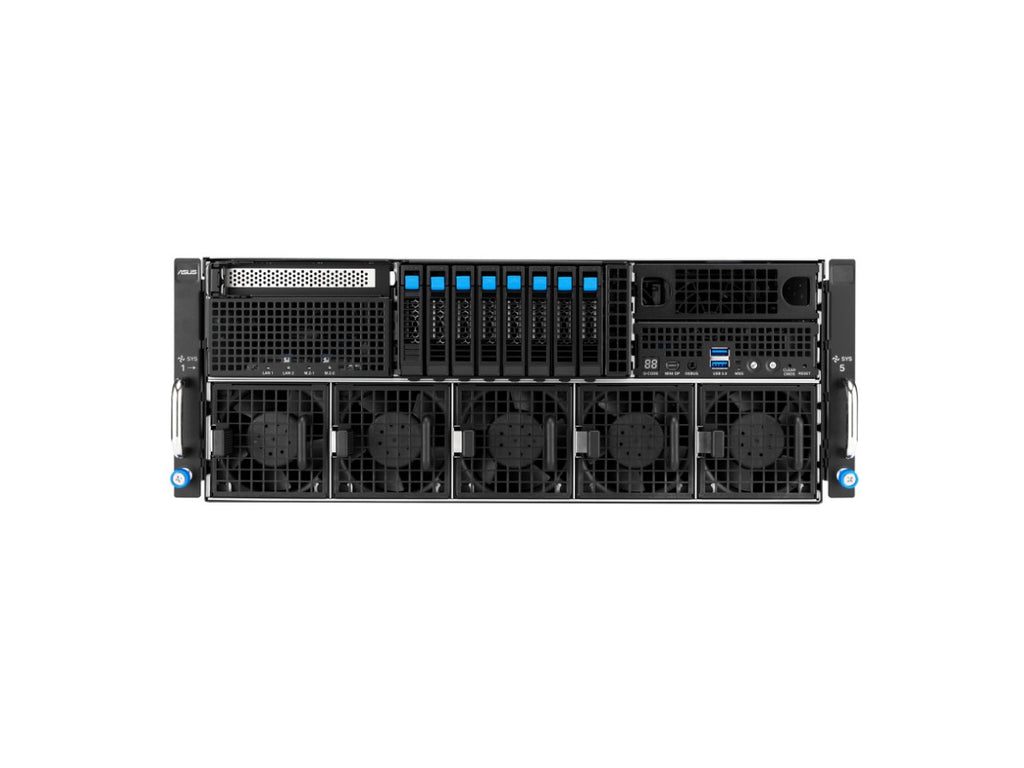

ASUS ESC8000A-E13P-32WP 4U Dual AMD EPYC 9005 192-Core 3TB 8×PCIe Gen5 8×GPU NVMe GPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
ASUS ESC8000A-E13P-32WP from the ESC GPU server series features dual AMD EPYC 9005 processors with 192 Zen 5c cores and 24 DDR5 slots supporting up to 3 TB memory. It includes 8 NVMe 2.5" drive bays, 8 dual-slot NVIDIA H200 GPUs, PCIe Gen5 expansion and a 3.2 KW power supply for high-performance AI and GPU compute workloads.
Specifications
Model Number:ESC8000A-E13P-32WP
Brand:ASUS
Alt Part Number(s):ESC8000A-E13P-32WP
Product Type: Server
Technical Description
Brand:ASUS
Model:ESC8000A-E13P-32WP
Cabinet Form Factor: 4U, GPU Server
Processor Type: EPYC 9005 series
Processor Manufacturer: AMD
Maximum Number of Processors Supported: 2
Mainboard / Chipset Type: AMD SP5
RAM Technology: DDR5
Total RAM Slots: 24
Maximum RAM Supported: 3 TB
Hard Drive Size: 2.5"
Number of Hard Drive Bays: 8
Data Link Protocol: Gigabit Ethernet
Power Device Type: Power Supply
Power Provided: 3.2 KW
Power Voltage Required: 220-240 Vac
Interfaces & Connections: 1 x Mini DisplayPort; 2 x USB 5Gbps; 1 x Debug port; 1 x USB 5Gbps; 2 x RJ-45 LAN; 1 x RJ-45 management LAN
Expansion Slots Total (Free): Rear: 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16, FH/FL); 5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16, FH/HL); Front: 1 x PCIe x16 (Gen5 x8, FH/HL); Supports 5 PCIe 5.0 slots
GPU Support: 8 dual-slot NVIDIA H200 GPUs; NVIDIA RTX PRO 6000 Blackwell Server Edition
NVMe Support: 8 x 2.5" NVMe
Width: 31.5 Inch
Depth: 17.3 Inch
Height: 6.9 Inch
Features: 192 Zen 5c cores; 12-channel memory up to 6400 MHz DDR5; Maximum TDP 500 W per socket; Fully compatible with NVIDIA MGX architecture for fast, large-scale deployment
*
