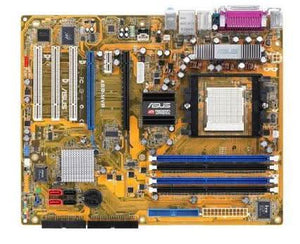

Asus A8R-MVP ATI Crossfire XPRESS 1600 Socket-939 AMD Athlon 64 FX DDR A L ATX Motherboard

Processor & Chipset

• Chipset Manufacturer:     ATI
• Chipset Model:     Radeon Xpress 200
• Total Processor Supported:     1
• Processor Technology:     Cool'n'Quiet Technology
• Processor Technology:     HyperTransport Technology
• Processor Socket:     Socket PGA-939
• Processor Supported:     Athlon 64
• Processor Supported:     Athlon 64 FX
• Processor Supported:     Athlon 64 X2
• Processor Supported:     Sempron
• HyperTransport Speed:     1000 MHz
• HyperTransport Speed:     800 MHz
• Multi GPU Supported:     CrossFire

Memory

• Number of Memory Slots:     4
• Maximum Memory:     4 GB
• Memory Standard:     DDR400/PC3200
• Memory Standard:     DDR333/PC2700
• Memory Standard:     DDR266/PC2100
• Memory Technology:     DDR SDRAM

I/O Controller

• Controller Type:     Floppy Controller
• Controller Type:     Serial ATA/300
• Controller Type:     Ultra ATA/133 (ATA-7)
• Controller Type:     Ultra ATA/100 (ATA-6)
• Controller Type:     Ultra ATA/66 (ATA-5)
• Controller Type:     Ultra ATA/33 (ATA-4)
• RAID Supported:     Yes
• RAID Levels:     0
• RAID Levels:     1
• RAID Levels:     1+0
• RAID Levels:     5
• RAID Levels:     JBOD

Audio

• Sound Controller Manufacturer:     ADI
• Sound Controller Model:     AD1986A
• Audio Channels:     5.1

Network & Communication

• Gigabit Ethernet:     Yes

I/O Expansions

• Number of Total Expansion Slots:     6
• Number of PCI Slots:     3
• Total Number of PCI Express Slots:     3
• Number of PCI Express x1 Slots:     1
• Number of PCI Express x16 Slots:     2

Interfaces/Ports

• Total Number of USB Ports:     4
• Number of USB 2.0 Ports:     4
• Total Number of FireWire/i.LINK Ports:     1
• Number of FireWire/i.LINK 400 Ports:     1
• Parallel Port:     Yes
• Serial Port:     Yes
• Audio Line In:     Yes
• Audio Line Out:     Yes
• Microphone Port:     Yes
• S/PDIF:     Yes
• Number of S/PDIF Out Ports:     1
• Network (RJ-45):     Yes
• PS/2 Port:     Yes
• Number of PS/2 Ports:     2

Onboard Interfaces

• Number of IDE Interfaces:     2
• Number of SATA Interfaces:     4
• Total Number of Onboard USB Ports:     2
• Number of Onboard USB 2.0 Ports:     2
• Total Number of Onboard FireWire/i.LINK Ports:     1
• Onboard LEDs Header:     Yes
• Onboard Audio Header:     Yes

Physical Characteristics

• Form Factor:     ATX
• Width:     12.0"
• Depth:     9.6"

Miscellaneous

• Package Contents:
• A8R-MVP Desktop Motherboard
• 1 x Floppy Disk Drive Signal Cable
• 1 x IDE Cable
• 1 x Ultra DMA Cable 133/100/66 Cable
• 2 x Serial ATA Signal Cables
• 1 x Serial ATA Power Cable (dual-plug)
• 1 x IEEE 1394a Cable
• I/O Shield
• 1 x MVP Switch Card
• 1 x 2-port USB 2.0/Game module
• Support CD
• User Guide
• Green Compliant:     Yes
• Green Compliance Certificate/Authority:     WEEE
