- Overview

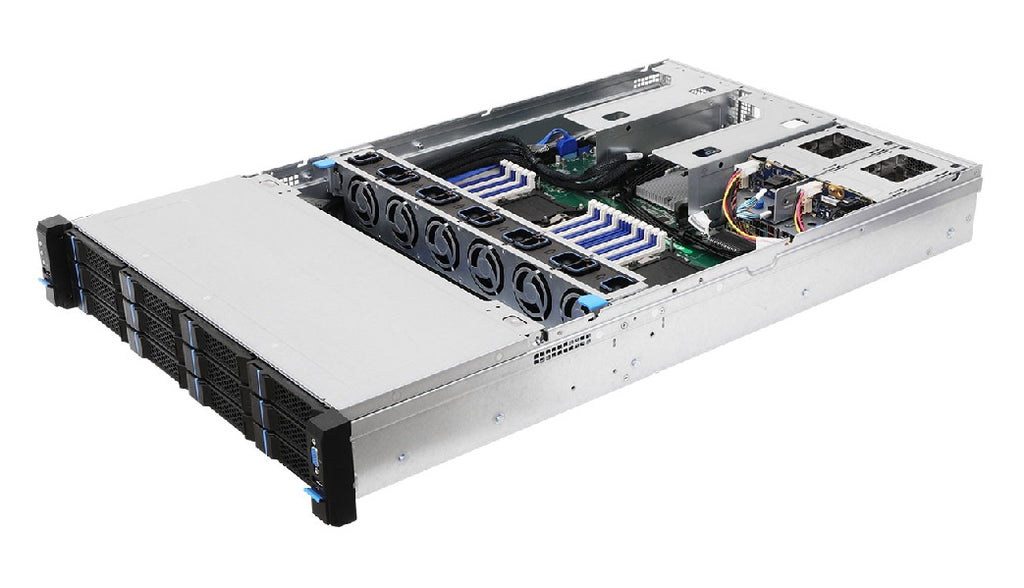

The RM23712-C622LM/22E is a 2U rackmount server barebone manufactured by ASRock Rack. It is designed for high-density storage and general-purpose server workloads, featuring an Intel C622 chipset and dual-socket support for Intel Xeon Scalable processors
- 2U rackmount with 1200W Redundant PSU (1+1)
- Dual Socket P (LGA 3647), supports 2ndGen. Intel®Xeon®Scalable Processors / Intel®Xeon®Scalable Processors
- Supports six Channel, 24 DIMM slots, DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel®Optane™ DC Persistent Memory in memory mode
- Supports 12 x 3.5" drive in the front, 2x 2.5" SATA drive and 2x U.2 in the rear
- Supports Mezzanine LAN card
- Supports 2 PCIe3.0 x16
Product Specification:
| Product Type: Barebone System |
| Manufacturer Part Number: RM23712-C622LM/22E |
| Manufacturer Website Address: https://www.asrockrack.com/index.asp |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock Rack Inc |
| Product Model: RM23712-C622LM/22E |
| Product Name: RM23712-C622LM/22E Barebone System |
| Processor Supported: Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| Controller Type: Serial ATA,Serial Attached SCSI (SAS) |
| Processor Socket: Socket P LGA-3647 |
| Rack Height: 2U |
| Brand Name: ASRock Rack |
| Memory Standard: DDR4-2933/PC4-23466 |
| 64 Bit Processing: Yes |
| Chipset Manufacturer: Intel |
| Chipset Model: C622 |
| Graphics Controller Model: AST2500 |
| Number Of Power Supplies Installed: 2 |
| Graphics Memory Capacity: 16 MB |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Number Of Processors Supported: 2 |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 16 |
| Number Of 3.5" Bays: 12 |
| Number Of Pci Express X16 Slots: 2 |
| Number Of Network (Rj 45) Ports: 1 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 1200 W |
| Total Number Of Usb Ports: 4 |
| Number Of Serial Ports: 1 |
| Number Of Vga Ports: 2 |
| Total Number Of Expansion Slots: 2 |
| Intel Optane Memory Ready: Yes |
| Number Of Usb 3.2 Gen 1 Ports: 3 |
| Total Number Of Memory Slots: 24 |
| Feature1: 2U rackmount with 1200W Redundant PSU (1+1) |
| Feature2: Dual Socket P (LGA 3647), supports 2ndGen. Intel®Xeon®Scalable Processors / Intel®Xeon®Scalable Processors |
| Feature3: Supports six Channel, 24 DIMM slots, DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel®Optane™ DC Persistent Memory in memory mode |
| Feature4: Supports 12 x 3.5" drive in the front, 2x 2.5" SATA drive and 2x U.2 in the rear |
| Feature5: Supports Mezzanine LAN card |
| Feature6: Supports 2 PCIe3.0 x16 |
