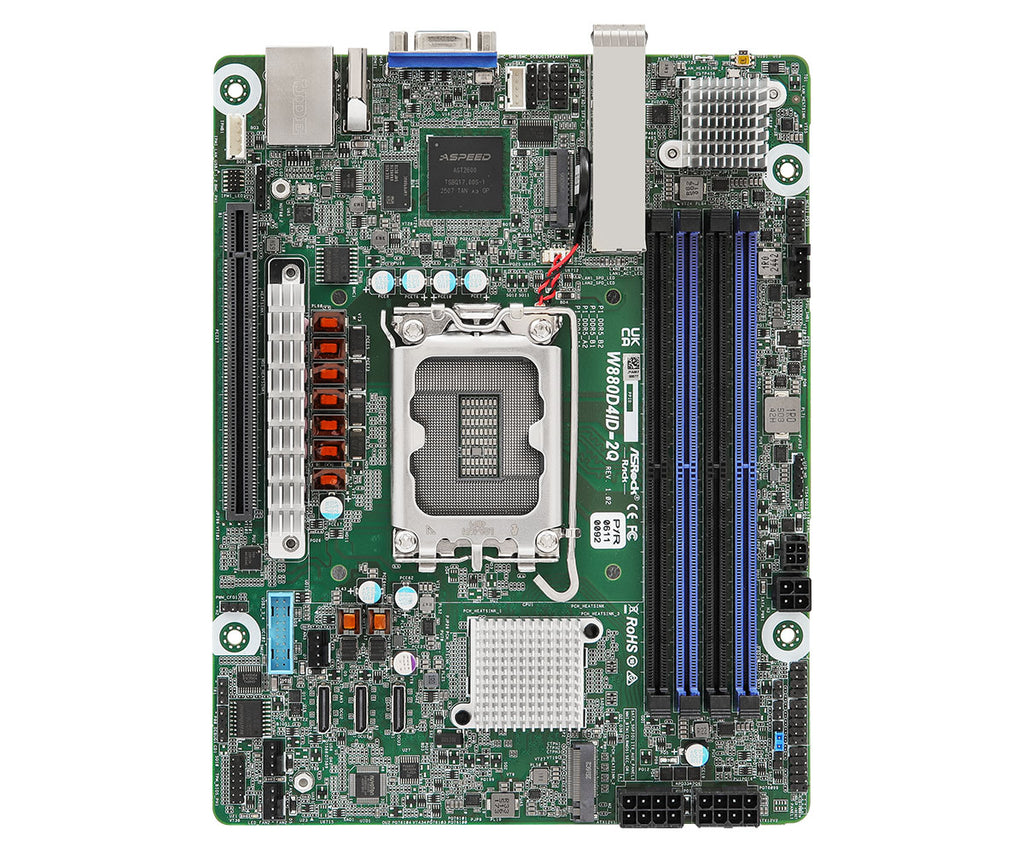

ASRock Rack W880D4ID-2Q Intel W880 LGA 1851 DDR5 25GbE Deep Mini ITX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASRock W880D4ID-2Q motherboard features a Deep mini ITX form factor, Intel W880 chipset, single LGA 1851 socket supporting Intel Core Ultra Desktop Processors Series 2, and four DDR5 ECC/non-ECC UDIMM or CUDIMM slots supporting up to 64 GB per DIMM. It provides PCIe 5.0 x16 expansion, PCIe 5.0 and 4.0 M.2 slots, eight SATA 6 Gb/s ports with RAID 0/1/5/10 support, dual 25GbE SFP28 networking, ASPEED AST2600 BMC with IPMI 2.0 and iKVM, dedicated IPMI LAN, HDMI and VGA outputs, and comprehensive server monitoring and management features.
Specifications
Model Number: W880D4ID-2Q
Brand: ASRock
Alt Part Number(s): W880D4ID-2Q
Product Type: Motherboard
Technical Description
Brand: ASRock
Model Number: W880D4ID-2Q
Form Factor: Deep mini ITX
Dimensions: 6.7" x 8.5937"
CPU: Supports Intel Core Ultra Desktop Processors Series 2
Processor Socket: Single Socket LGA 1851
Chipset: Intel W880
Supported DIMM Quantity: 4 DIMM slots (2DPC)
Supported Memory Type: DDR5 288-pin ECC/non-ECC UDIMM; CUDIMM
Maximum Capacity per DIMM: 64 GB
Maximum DIMM Frequency: CUDIMM: 6400 MT/s (1SPC); 5600 MT/s (2SPC 0R2R); 4800 MT/s (2SPC 1R1R); 4400 MT/s (2SPC 2R2R); ECC/non-ECC UDIMM: 5600 MT/s (2SPC 0R2R); 4800 MT/s (2SPC 1R1R); 4400 MT/s (2SPC 2R2R)
PCIe Expansion Slots: SLOT7: PCIe 5.0 x16 (CPU)
M.2 Slots: 1 M-key PCIe 5.0 x4 supporting 2280 form factor (CPU); 1 M-key PCIe 4.0 x4 supporting 2280 form factor (PCH)
OCuLink Connectors: 2 OCuLink PCIe 4.0 x4 or 4 SATA 6 Gb/s (PCH); 1 OCuLink PCIe 4.0 x4 (PCH)
Storage Controller: Intel W880 PCH; 8 SATA 6 Gb/s; RAID 0/1/5/10; 2 OCuLink
Ethernet Controller: Intel E810; 2 SFP28 25GbE ports
BMC Controller: ASPEED AST2600; IPMI 2.0 with iKVM and virtual media support
Dedicated IPMI LAN: 1 RJ45 port; Realtek RTL8211F
Graphics Controller: ASPEED AST2600; 1 DB15 VGA port; Intel integrated processor graphics; 1 HDMI port
Rear I/O: 1 UID button; 1 UID LED; 1 DB15 VGA port; 1 HDMI port; 2 USB 3.2 Gen 1 Type-A ports; 1 dedicated IPMI RJ45 port; 2 SFP28 25GbE ports
Power Connectors: 1 Micro-Fit 4-pin ATX PSU signal connector with ATX 24-pin adapter cable; 2 8-pin ATX 12V connectors supporting 12V DC-in; 1 4-pin HDD power connector for 12V DC-in power source
Auxiliary Panel Header: 1 9-pin header for chassis intrusion, system fault LED, LAN1/LAN2 activity LED, and locate
System Panel Header: 1 9-pin header for power switch, reset switch, system power LED, and HDD activity LED
COM Header: 1 9-pin
Speaker Header: 1
Fan Headers: 3 4-pin
Thermal Sensor Header: 1
TPM Header: 1 13-pin SPI
SGPIO Header: 1
SMBus Header: 1
PMBus Header: 1
IPMB Header: 1
Clear CMOS: 1 2-pin
Other Headers: 1 UID_LED; 1 IPMI_LED; 1 USB 3.2 Gen 1 19-pin header supporting 2 USB 3.2 Gen 1 ports; 1 NMI header; 1 NC-SI
LED Indicators: 1 standby power LED (5VSB); 3 fan fail LEDs; 1 BMC heartbeat LED
BIOS Type: AMI 256 Mb SPI Flash ROM
BIOS Features: Plug and Play; ACPI 6.4 and above compliance wake-up events; SMBIOS 2.3 and above; ASRock Rack Instant Flash
Temperature Monitoring: CPU; PCH; motherboard; card side; TR1; VR; M.2; E810
Fan Monitoring and Control: Fan tachometer; CPU Quiet Fan with chassis fan speed auto-adjustment by CPU temperature; multi-speed fan control
Voltage Monitoring: VCORE; GT; VCCSA; VNNAON; VCCIO; 1.8V_CPU; VDD2; 0.82V_PCH; 1.8VSB; 3V; 5V; 12V; BAT; 3VSB; 5VSB
Operating Temperature: 10°C to 35°C
Non-Operating Temperature: -40°C to 70°C
Operating Humidity: 20% to 90%, non-condensing
