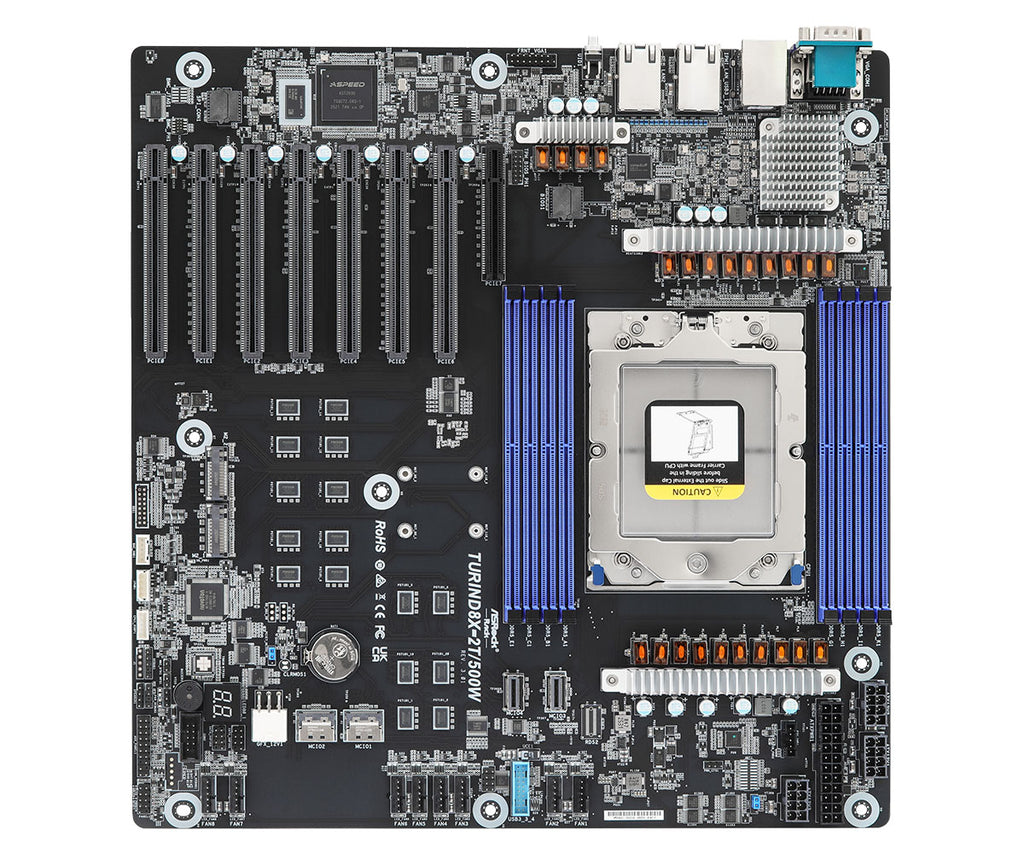

ASRock Rack TURIND8X-2T/500W AMD EPYC 9005/9004 SP5 DDR5-6400 Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASRock Rack TURIND8X-2T/500W server motherboard features an EEB form factor, single Socket SP5 LGA 6096 supporting AMD EPYC 9005 and 9004 series processors with 3D V-Cache technology and up to 500W TDP, and eight DDR5 RDIMM or RDIMM-3DS memory slots supporting speeds up to 6400 MHz. It provides seven PCIe 5.0 x16 slots with CXL 2.0 support on selected slots, one PCIe 5.0 x8 slot, dual M.2 slots, up to 16 SATA 6 Gb/s connections, dual 10GbE networking, ASPEED AST2600 BMC with dedicated IPMI management, VGA output, USB 3.2 Gen1 ports, extensive server monitoring and management features, and support for Windows Server, Linux, and VMware ESXi.
Specifications
Model Number: TURIND8X-2T/500W
Brand: ASRock
Alt Part Number(s): TURIND8X-2T/500W
Product Type: Motherboard
Technical Description
Brand: ASRock
Model Number: TURIND8X-2T/500W
Form Factor: EEB
Dimensions: 12.63" x 13"
CPU: Supports AMD EPYC™ 9005/9004 with AMD 3D V-Cache™ Technology and 97x4 series processors
Socket: Single Socket SP5 (LGA 6096)
Thermal Design Power: Up to 500W
Chipset: System on Chip
Supported DIMM Quantity: 8 DIMM slots (1DPC)
Supported Type: DDR5 288-pin RDIMM; RDIMM-3DS
Max. Capacity per DIMM: RDIMM: 128GB (2Rx4); RDIMM-3DS: 256GB (2Rx4)
Max. DIMM Frequency: 6400 MHz
Voltage: 1.1V
PCIe x 16: SLOT6: PCIe 5.0 / CXL 2.0 x16; SLOT5: PCIe 5.0 x16; SLOT4: PCIe 5.0 / CXL 2.0 x16; SLOT3: PCIe 5.0 x16; SLOT2: PCIe 5.0 / CXL 2.0 x16; SLOT1: PCIe 5.0 x16; SLOT0: PCIe 5.0 / CXL 2.0 x16
PCIe x 8: SLOT7: PCIe 5.0 x8
M.2 slot: 1 M-key (PCIe 5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280 form factor; 1 M-key (PCIe 5.0 x4), supports 22110/2280 form factor
Others: 2 MCIO (PCIe 5.0 x4 or 4 SATA 6Gb/s); 1 MCIO (PCIe 5.0 x4 or 4 SATA 6Gb/s); 1 MCIO (PCIe 5.0 x4)
PCH Built-in Storage: AMD EPYC 9005/9004 (16 SATA 6Gb/s): 3 MCIO, 4 SATA via optional M2U2_HD_G4 M.2 device
Additional GbE Controller: Broadcom BCM57416: 2 RJ45 (10GbE)
BMC Controller: ASPEED AST2600
IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
Controller: ASPEED AST2600
VRAM: DDR4 512MB
UID Button/LED: 1 UID button with LED
Video Port: 1 DB15 (VGA)
Serial Port: 1 DB9 (COM)
USB 3.2 Gen1 Port: 2 Type-A (USB 3.2 Gen1)
RJ45: 2 RJ45 (10GbE); 1 dedicated IPMI
Power Connector: 1 (24-pin, ATX main power); 3 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1
VGA header: 1
Speaker Header: 1 (4-pin)
Fan Header: 8 (6-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB 3.2 Gen1)
NMI Header: 1
Standby PWR LED: 1 (5VSB)
80 Debug Port LED: 1
Fan Fail LED: 8
BMC heartbeat LED: 1
BIOS Type: AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features: ASRock Rack Instant Flash; ACPI 6.4 and above compliance wake up events; SMBIOS 3.5.0 and above; Plug and Play (PnP)
Temperature: CPU, MB, TR1 temperature sensing
Fan: CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (allows chassis fan speed auto-adjust by CPU temperature); CPU/Rear/Front Fan Multi-Speed Control
Voltage: VCORE, VCCSA, VCCM, 3V, 5V, 12V, +1.05V_PCH_AUX, +BAT, 3VSB, 5VSB, VCCIO, +2.5V_VPP
Microsoft® Windows (for EPYC 9004): Server 2019 (64 bit); Server 2022 (64 bit)
Microsoft® Windows (for EPYC 9005): Server 2019 (64 bit); Server 2022 (64 bit); Server 2025 (64 bit)
Linux (for EPYC 9004): RedHat Enterprise Linux Server 8.6 (64 bit); Server 8.7 (64 bit); Server 9.0 (64 bit); Server 9.1 (64 bit); SUSE SLES 15.4 (64 bit); Ubuntu 20.04.5 (64 bit); 22.04 (64 bit); 22.10 (64 bit)
Linux (for EPYC 9005): RedHat Enterprise Linux Server 8.10 (64 bit); Server 9.4 (64 bit); SUSE SLES 15.6 (64 bit); Ubuntu 22.04.5 (64 bit); 24.04.2 (64 bit)
Hypervisor (for EPYC 9004): VMware® ESXi 8.0
Hypervisor (for EPYC 9005): VMware® ESXi 9.0
Temperature: Operating temperature: 10°C to 35°C; Non-operating temperature: -40°C to 70°C
Humidity: Non-operating humidity: 20% to 90% (non-condensing)
