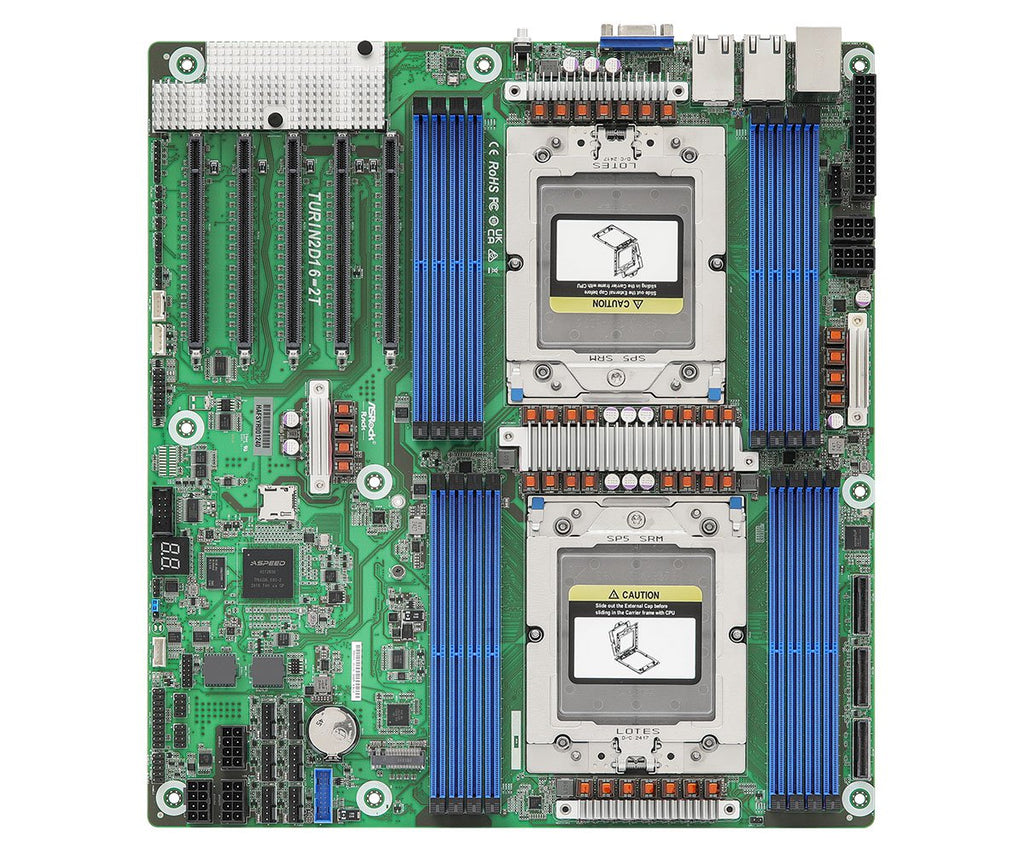

ASRock Rack TURIN2D16-2T AMD EPYC 9005/9004 SP5 DDR5 RDIMM EEB Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASRock Rack TURIN2D16-2T TURIN2D16-2T series EEB motherboard supports AMD EPYC 9005 and 9004 processors with AMD 3D V-Cache Technology, dual Socket SP5 LGA 6096, up to 400 W TDP, and 16 DDR5 RDIMM or RDIMM-3DS slots supporting up to 512 GB per DIMM at 6400 MHz. It features PCIe 5.0 and PCIe 4.0 expansion, dual 10GbE networking, ASPEED AST2600 BMC, up to 16 SATA 6Gb/s connections, a PCIe 4.0 M.2 slot, VGA, and USB 3.2 Gen1 connectivity for enterprise server applications.
Specifications
Model Number: TURIN2D16-2T
Brand: ASRock
Alt Part Number(s): TURIN2D16-2T
Product Type: Motherboard
Technical Description
Brand: ASRock
Model Number: TURIN2D16-2T
Form Factor: EEB
Dimensions: 12" x 13.2"
CPU: Supports AMD EPYC 9005/9004 with AMD 3D V-Cache Technology and 97x4 series processors
Socket: Dual Socket SP5 (LGA 6096)
Thermal Design Power: Up to 400W
Chipset: System on Chip
Supported DIMM Quantity: 8+8 DIMM slots (1DPC)
Supported Type: DDR5 288-pin RDIMM; RDIMM-3DS
Max. Capacity per DIMM: RDIMM: 128GB (2Rx4); RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency: 6400 MHz
Voltage: 1.1V
PCIe x 16: SLOT5: PCIe5.0 / CXL2.0 x16 [CPU1]; SLOT4: PCIe5.0 / CXL2.0 x16 [CPU1]; SLOT3: PCIe4.0 x16 [CPU1]; SLOT2: PCIe4.0 x16 [CPU0]; SLOT1: PCIe4.0 x16 [CPU0]
M.2 slot: 1 M-key (PCIe4.0 x4), supports 22110/2280 form factor [CPU0]
Others: 2 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s) [CPU0]; 1 MCIO (PCIe5.0 / CXL2.0 x8) [CPU0]
PCH Built-in Storage: AMD EPYC 9005/9004: Up to 16 SATA 6Gb/s; 2 MCIO
Additional GbE Controller: Intel X710-AT2: 2 RJ45 (10GbE)
BMC Controller: ASPEED AST2600
IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
Controller: ASPEED AST2600: 1 DB15 (VGA); 1 (15-pin) header
UID Button/LED: 1 UID button w/ LED
Video Port: 1 DB15 (VGA)
USB 3.2 Gen1 Port: 2 Type-A (USB 3.2 Gen1)
RJ45: 2 RJ45 (10GbE); 1 dedicated IPMI
Power Connector: 1 (24-pin, ATX main power); 5 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1
Fan Header: 6 (6-pin)
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 2
HSBP: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
Front Lan LED Connector: 1
USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB 3.2 Gen1)
NMI Header: 1
Standby PWR LED: 1 (5VSB)
80 Debug Port LED: 1
Fan Fail LED: 6
BMC heartbeat LED: 1
BIOS Type: AMI 256Mb SPI Flash ROM
BIOS Features: ASRock Rack Instant Flash; ACPI 6.4 and above compliance wake up events; SMBIOS 3.5.0 and above; Plug and Play (PnP)
Temperature: CPU, MB, Card side Temperature sensing; Operation temperature: 10°C ~ 35°C; Non operation temperature: -40°C ~ 70°C
Fan: CPU/Rear/Front Fan Tachometer; CPU Quiet Fan; CPU/Rear/Front Fan Multi-Speed Control
Voltage: VDDCR_CPU0; VDDCR_CPU1; VDDCR_SOC; VDDIO; VDD_11_S3; +3V; +5V; +12V; +BAT; +3VSB; +5VSB
Humidity: Non operation humidity: 20% ~ 90% (Non condensing)
