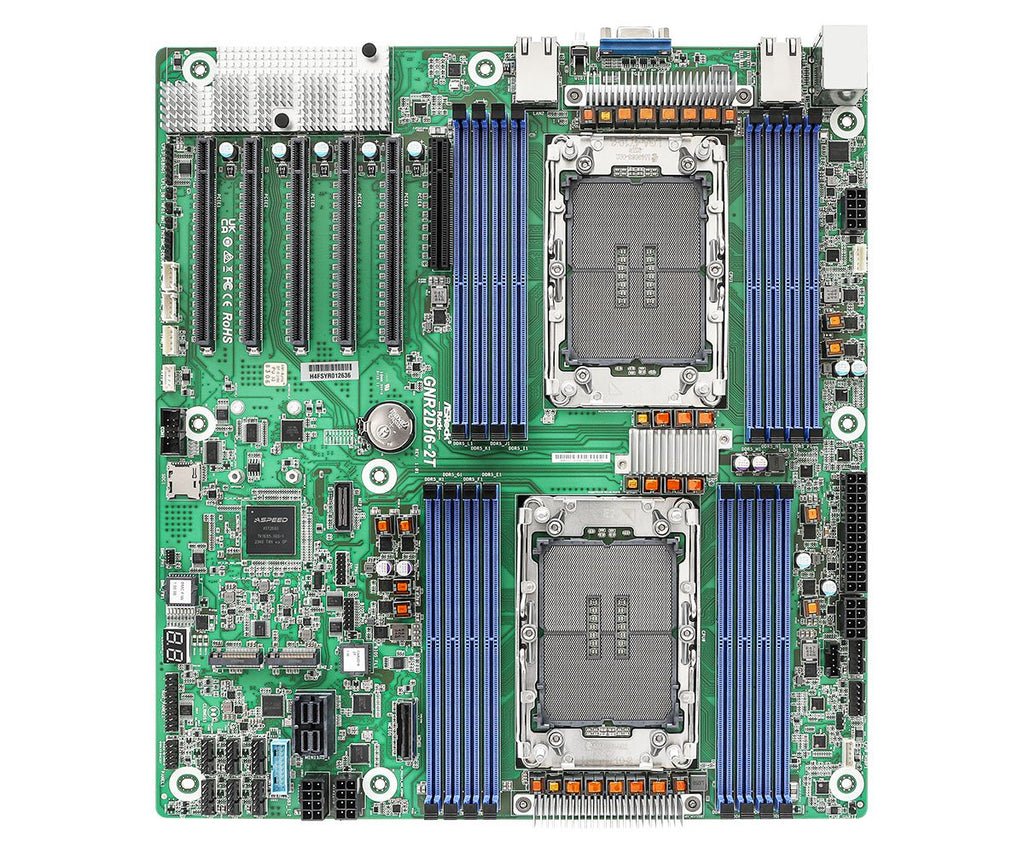

ASRock Rack GNR2D16-2T Intel Xeon 6700E LGA 4710 DDR5 RDIMM EEB Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ASRock Rack GNR2D16-2T series EEB motherboard supports Intel Xeon 6700E-series processors with dual Socket E2 LGA 4710, 16 DDR5 RDIMM slots supporting up to 128GB per DIMM at 6400MT/s, and five PCIe 5.0 x16 CXL 2.0 slots. It features dual 10GbE networking, ASPEED AST2600 BMC with IPMI 2.0 and iKVM, eight SATA 6Gb/s ports, two M.2 PCIe 5.0 interfaces, VGA, USB 3.2 Gen1, and comprehensive server management and monitoring capabilities.
Specifications
Model Number: GNR2D16-2T
Brand: ASRock
Alt Part Number(s): GNR2D16-2T
Product Type: Motherboard
Technical Description
Brand: ASRock
Model Number: GNR2D16-2T
Form Factor: EEB
Dimensions: 12" x 13"
CPU: Supports Intel Xeon 6700E-series processors
Socket: 1+1 Socket E2 (LGA 4710)
Chipset: System on Chip
Supported DIMM Quantity: 8+8 DIMM slots (1DPC)
Supported Type: DDR5 RDIMM
Max. Capacity per DIMM: RDIMM: 128GB
Max. DIMM Frequency: RDIMM: 6400MT/s
Voltage: 1.1V
PCIe x 16: SLOT1: PCIe5.0 / CXL2.0 x16 [CPU1]; SLOT2: PCIe5.0 / CXL2.0 x16 [CPU0]; SLOT3: PCIe5.0 / CXL2.0 x16 [CPU1]; SLOT4: PCIe5.0 / CXL2.0 x16 [CPU0]; SLOT5: PCIe5.0 / CXL2.0 x16 [CPU1]
PCIe x 8: SLOT6: PCIe5.0 / CXL2.0 x8 [CPU0]
TPM support: 1 (13-pin, SPI)
M.2 slot: 2 M-key (PCIe5.0 x2), supports 22110/2280 form factor [CPU0]
Others: 1 MCIO (PCIe5.0 / CXL2.0 x8) [CPU0]; 1 RAID header; 1 Micro SD card slot
Additional SATA Controller: 8 SATA 6Gb/s by ASM1164; 2 Mini-SAS HD
Additional GbE Controller: 2 RJ45 (10GbE) by Intel X710-AT2
BMC Controller: ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
Controller: ASPEED AST2600: 1 DB15 (VGA)
UID Button/LED: 1 UID button w/ LED
VGA Port: 1 DB15 (VGA)
USB 3.2 Gen1 Port: 2 Type-A (USB 3.2 Gen1)
RJ45: 2 RJ45 (10GbE); 1 dedicated IPMI
Power Connector: 1 (24-pin, ATX main power); 4 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1 (9-pin)
Fan Header: 8 (6-pin)
TPM Header: 1 (13-pin, SPI)
HSBP: 2
SMBus header: 2
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB 3.2 Gen1)
NMI Header: 1
Standby PWR LED: 1 (5VSB)
80 Debug Port LED: 1
Fan Fail LED: 80
BMC heartbeat LED: 1
Others LED: 1 CPLD Heartbeat LED; 1 System Caterr LED
BIOS Type: AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features: Plug and Play; ACPI 4.0 and above compliance wake up events; SMBIOS 3.4 and above; ASRock Rack instant flash
Temperature: CPU, MB, Card side Temperature Sensing; Operation temperature: 10C ~ 35C; Non operation temperature: -40C ~ 70C
Fan: Fan Tachometer; CPU Quiet Fan; Fan Multi-Speed Control
Voltage: PSU +12V & +5VSB & +3.3V; +3VSB; PVNN_PCH; P1V05_PCH_STBY; P1V8_PCH_STBY; +BAT; PVCCIN_CPU0; PVCCIN_CPU1; PVCCINFAON_CPU0; PVCCINFAON_CPU1; PVCCFA_EHV_FIVRA_CPU0; PVCCFA_EHV_FIVRA_CPU1; PVCCD_HV_CPU0; PVCCD_HV_CPU1
Humidity: Non operation humidity: 20% ~ 90% (Non condensing)
