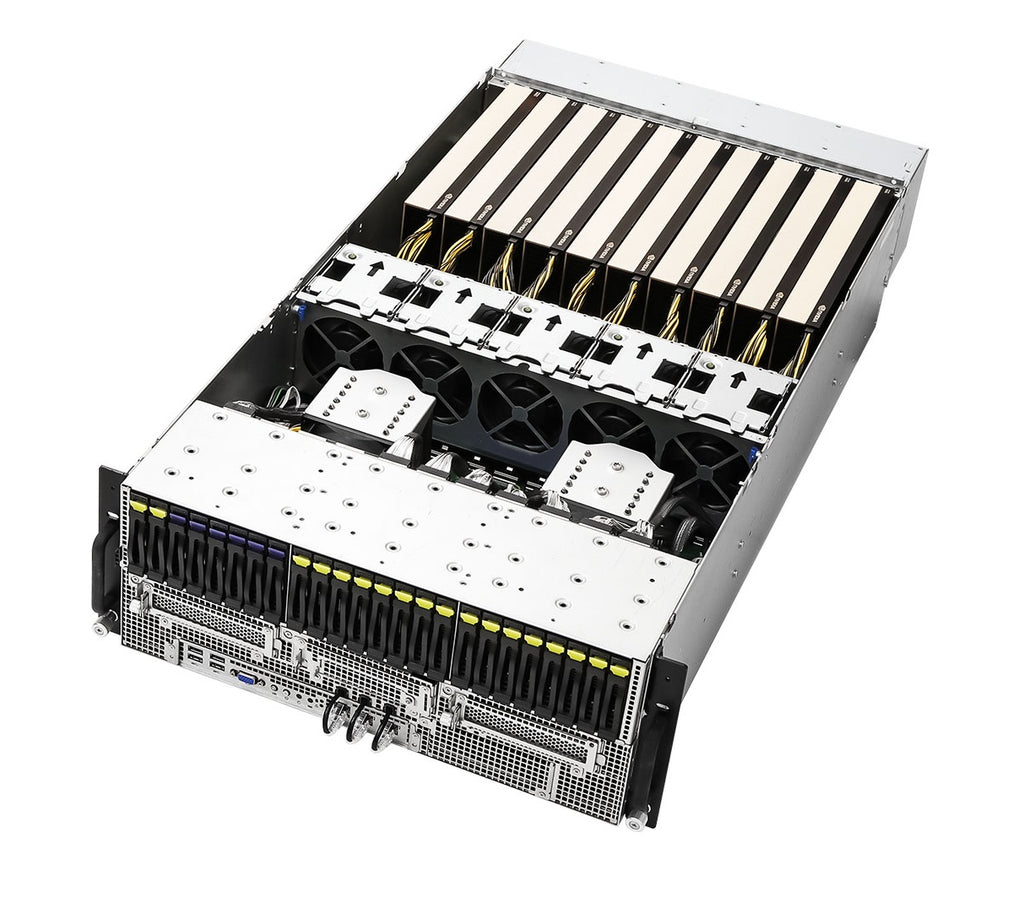

ASRock Rack 4U10G-GNR2/RF+ Intel Xeon 6700P/6500P/6700E Series Dual Socket 3200W PSU 4U Rackmount Barebone AI GPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The ASRock Rack 4U10G-GNR2/RF+ is a high-performance 4U rackmount barebone AI GPU server designed for artificial intelligence, machine learning, real-time inference, and high-performance computing. It supports dual Intel Xeon 6700P, 6500P, and 6700E series processors with 32 DDR5 DIMM slots for high-capacity memory configurations. The system features 10 dual-slot PCIe 5.0 x16 expansion slots for GPUs and accelerators, 18 hot-swappable 2.5-inch PCIe 5.0 NVMe drive bays, and support for up to 6 additional SATA/SAS drives with a compatible RAID/HBA controller. It also provides an OCP NIC 3.0 expansion slot, dual 1GbE LAN ports, IPMI remote management, and a redundant 3+1 3200W 80 PLUS Titanium power supply configuration. Its enhanced cooling design supports GPUs and accelerator cards up to 600W, making it suitable for demanding enterprise AI and data-center workloads
Specifications
Model Number: 4U10G-GNR2/RF+
Brand: ASRock
Alt Part Number(s): 4U10G-GNR2/RF+
Product Type: Barebone AI GPU Server
Technical Description
Brand: ASRock
Model Number: 4U10G-GNR2/RF+
Processor Support: Intel Xeon 6700P, 6500P and 6700E series
Processor Socket: Dual Socket E2 (LGA 4710)
Maximum CPU TDP: Up to 350W, depending on CPU and configuration
Motherboard: GNR2D32G-2L+
Chipset: System on Chip
Graphics Controller: ASPEED AST2600
VRAM Capacity: DDR4 512MB
Memory Type: DDR5 RDIMM, MRDIMM
Maximum Capacity per DIMM: RDIMM- 128GB, MRDIMM- 64GB
Maximun DIMM Frequency: RDIMM- 6400MT/s (1DPC), 5200MT/s (2DPC), MRDIMM- 8000MT/s (1DPC only)
Memory Slots: 32 DDR5 DIMM slots (16+16, 2DPC)
NVMe Drive Bays: 18 hot-swap 2.5-inch PCIe 5.0 x4 NVMe
Additional Drive Bays: Up to 6 hot-swap 2.5-inch SATA/SAS in the RF+ configuration; RAID/HBA card required
GPU Expansion: 10 × FHFL dual-slot PCIe 5.0 x16
Additional PCIe Slots: 1 × FHFL single-slot PCIe 5.0 x16; 2 × FHHL PCIe 5.0 x16
M.2 storage: 1 × PCIe 5.0 x4
Networking: 1 × OCP NIC 3.0 PCIe 5.0 x16; 2 × 1GbE RJ45
Power Supply: 3+1 redundant 3200W CRPS, 80 PLUS Titanium
Cooling: 5 middle + 5 rear hot-swap 80 × 80 mm fans
Form Factor: 4U Rackmount
