ASRock Rack 1U1G2E-GNR Intel Xeon 6700P/6500P/6700E Series DDR5 1U Rackmount Barebone AI GPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

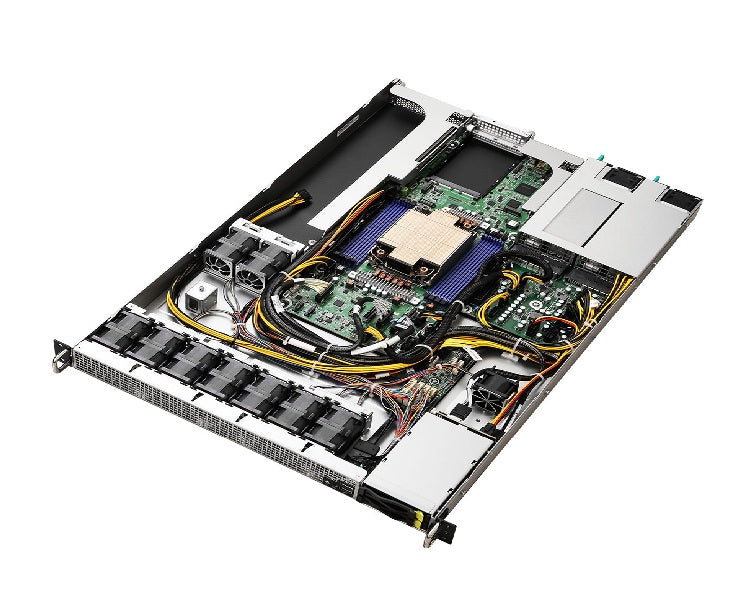

The ASRock Rack 1U1G2E-GNR is a compact 1U rackmount AI GPU server barebone designed for edge AI computing, data visualization, GPU acceleration, and enterprise workloads. It supports a single Intel Xeon 6700P, 6500P, or 6700E series processor with a Socket E2 (LGA 4710) interface and eight DDR5 ECC RDIMM/MRDIMM memory slots. The system features one full-height, full-length dual-slot PCIe 5.0 x16 expansion slot supporting GPUs or accelerator cards up to 600W at 25°C ambient temperature, an additional PCIe 5.0 x16 slot, and an OCP NIC 3.0 slot for flexible expansion. Storage options include two hot-swappable 2.5-inch NVMe drive bays and two M.2 PCIe 5.0 x4 slots. Equipped with a 1+1 redundant 1600W CRPS power supply, high-performance cooling fans, and ASPEED AST2600 BMC remote management, this server provides a space-efficient platform for demanding computing and acceleration applications. CPU, memory, GPU, and storage configurations depend on the final build.
Specifications
Model Number: 1U1G2E-GNR
Brand: ASRock
Alt Part Number(s): 1U1G2E-GNR
Product Type: Barebone AI GPU Server
Technical Description
Brand: ASRock
Model Number: 1U1G2E-GNR
Processor Type: Intel Xeon 6700P/6500P/6700E series
Processor Socket: Single Socket E2 (LGA 4710)
Processor TDP: Up to 350W
Chipset: System on Chip
Memory Technology: DDR5 ECC RDIMM / MRDIMM
Memory Slots: 8 × DIMM (1DPC)
Graphics Controller: ASPEED AST2600
Drive Bays: 2 × 2.5-inch hot-swap NVMe, PCIe 4.0 x4
Networking: 2 × 1GbE RJ45; 1 × dedicated IPMI LAN
OCP Networking: 1 × OCP NIC 3.0, PCIe 5.0 x16
Cooling: 9 × hot-swap 40 × 56 mm fans + 1 × hot-swap 40 × 28 mm fan
Power Supply: 1+1 redundant CRPS, 1600W, 80 PLUS Titanium
Form Factor: 1U Rackmount/GPU Server
