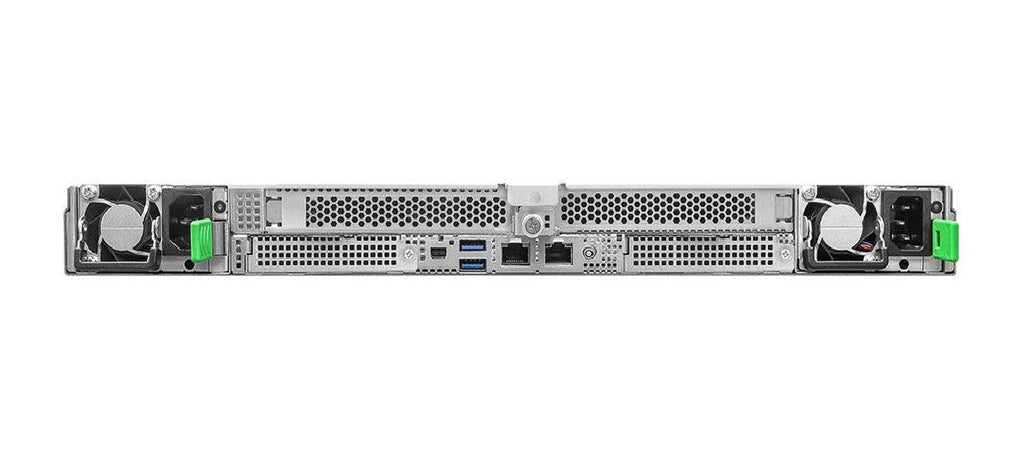

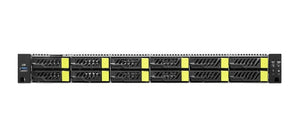

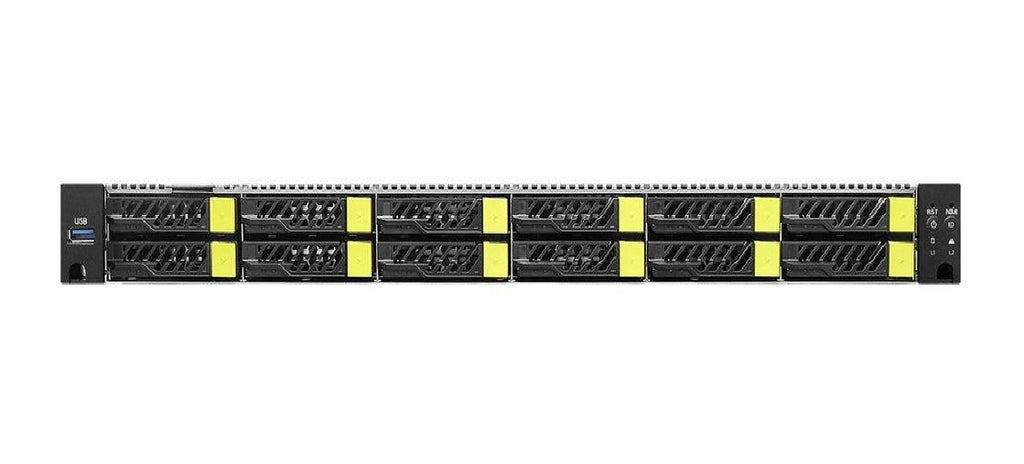

ASRock Rack 1U12E-GNR2/EVAC Intel Xeon 6 DDR5 1U Rackmount Server Barebone
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The ASRock Rack 1U12E-GNR2/EVAC is a high-performance 1U rackmount server barebone designed for enterprise data centers, high-performance storage, virtualization, and data analytics. It supports dual Intel Xeon 6700P-series, 6500P-series, and 6700E-series processors with Dual Socket E2 (LGA 4710) and up to 350W CPU TDP. The system features 32 DDR5 RDIMM/MRDIMM memory slots and 12 hot-swappable 2.5-inch PCIe 5.0 x4 NVMe drive bays for high-density storage. Additional expansion includes two PCIe 5.0 x16 slots, two M.2 PCIe 5.0 x4 slots, and two OCP NIC 3.0 slots. It also offers redundant 1+1 2000W 80 PLUS Titanium power supplies, eight hot-swappable cooling fans, and ASPEED AST2600-based IPMI remote management, making it suitable for demanding enterprise computing and storage workloads.
Specifications
Model Number: 1U12E-GNR2/EVAC
Brand: ASRock
Alt Part Number(s): 1U12E-GNR2/EVAC
Product Type: Server Barebone
Technical Description
Brand: ASRock
Model: 1U12E-GNR2/EVAC
Motherboard: GNR2D32TM3/1U
Processor Type: Intel Xeon 6
Processor Socket: Dual Socket E2 (LGA 4710)
Memory Technology: DDR5
Memory Slot: 32 DIMM slots
Memory Speed: RDIMM 6400 MT/s (1DPC), 5200 MT/s (2DPC), MRDIMM 8000 MT/s (1DPC)
Memory Capacity: Up to 4TB DDR5 RDIMM
Graphics Controller: ASPEED AST2600
Storage Bays: 12 × hot-swap 2.5-inch NVMe
Drive Interface: PCIe 5.0 x4
Expansion Slots: 2 × FHHL PCIe 5.0 x16
Supported Drives: M.2 Slots: 2 × M.2 M-key PCIe 5.0 x4
Power Supply: 1+1 redundant CRPS
Form Factor: 1U Rackmount
