Description

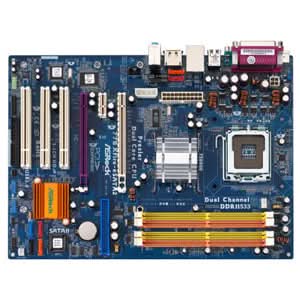

775XFire-eSATA2 Desktop Board, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
- Chipset Manufacturer: Intel
- Chipset Model: 945PL
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket T LGA-775
- Processor Supported: Pentium D
- Processor Supported: Pentium 4
- Processor Supported: Celeron D
- Front Side Bus: 533 MHz
- Front Side Bus: 800 MHz
- 64-bit Processing: Yes
- Multi GPU Supported: CrossFire
Processor & Chipset
- Number of Memory Slots: 4
- Maximum Memory: 2 GB
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/100 (ATA-6)
- RAID Supported: Yes
- RAID Levels: 0
- RAID Levels: 1
- RAID Levels: 5
- RAID Levels: 1+0
I/O Controller
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC660
- Audio Channels: 5.1
Audio
- Fast Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 6
- Number of PCI Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x16 Slots: 1
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- Network (RJ-45): Yes
- PS/2 Port: Yes
- Number of PS/2 Ports: 2
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Onboard Interfaces
- Form Factor: ATX
- Width: 12.0"
- Depth: 8.6"
Physical Characteristics
- Package Contents:
- 775XFire-eSATA2 Desktop Board
- 1 x 80-conductor Ultra ATA 66/100 IDE Ribbon Cable
- 1 x Ribbon Cable for a 3.5-in Floppy Drive
- 1 x I/O Panel Shield
- Quick Installation Guide
- Support CD
-
Additional Information:
BIOS:
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports Plug and Play
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
- Drivers
- Utilities
- AntiVirus Software
Miscellaneous
Support CD Contents:
