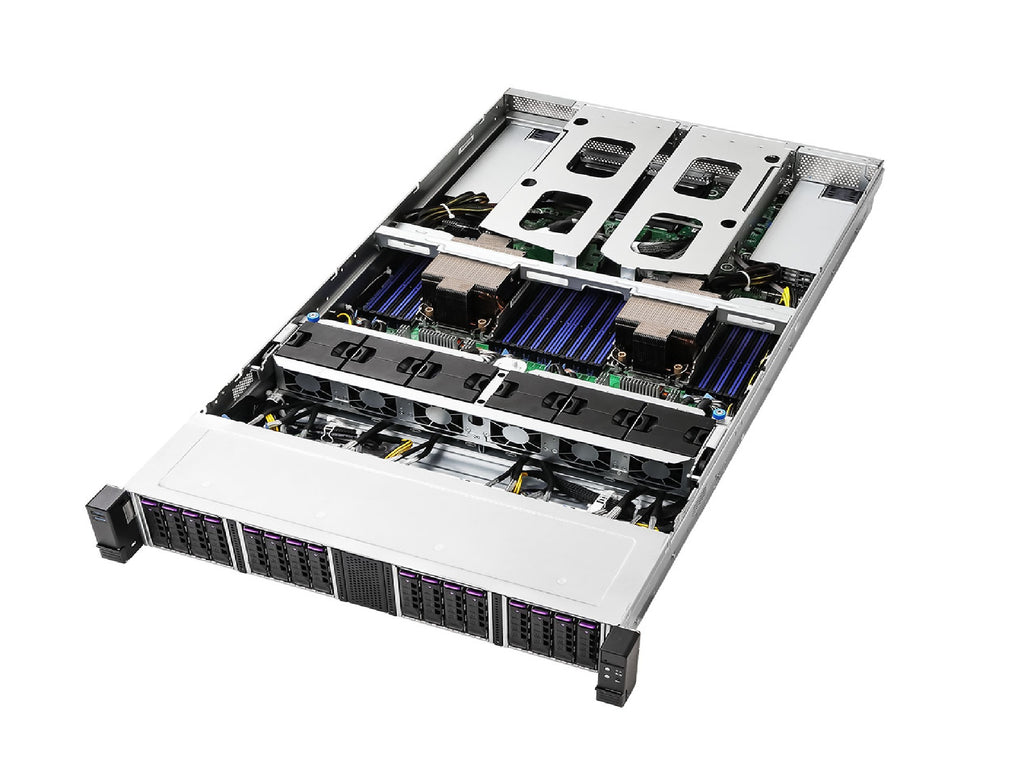

ASRock 2U16E3S-GNR2FLW Intel Xeon 2×AMD SP5 (LGA 6096) 128GB 2U Rackmount Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The ASRock Rack 2U16E3S-GNR2FLW is a high-density, 2U dual-socket all-flash storage server optimized for high-performance computing (HPC), network infrastructure, software-defined storage (SDS), and data-intensive AI workloads. Built on the ASRock Rack GNR2D32FLW motherboard, it supports Intel Xeon 6 processors (6700P, 6500P, and 6700E series) to deliver massive I/O throughput and exceptional compute density close to data-hungry environments
Specifications
Model Number: 2U16E3S-GNR2FLW
Brand: ASRock
Alt Part Number(s): 2U16E3S-GNR2FLW
Product Type: Server
Technical Description
Brand: ASRock
Model Number: 2U16E3S-GNR2FLW
Processor Series: Intel Xeon 6700P-series, 6500P-series, and 6700E-series processors
Processor Sockets: 2 × AMD SP5 (LGA 6096)
Maximum CPU TDP: Up to 500W per CPU
Motherboard: GNR2D32FLW
GPU Count: 8 × AMD Instinct MI350X
GPU Architecture: AMD CDNA 4
GPU Memory: 288 GB HBM3E per GPU
Total GPU memory: 2.304TB
GPU Memory Bandwidth: 8TB/s per GPU
System Memory Slots: 24 DDR5 DIMM slots
Capacity per DIMM: RDIMM: 128GB MRDIMM: 64GB
Max. DIMM Frequency: RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC)
MRDIMM: 8000MT/s (1DPC only)
Maximum System RAM: Up to 6TB, subject to validated configuration
Memory Speed: Up to 6400 MT/s
Storage: 16 hot-swap E3.S NVMe SSD bays
M.2 slots: 2
PCIe Expansion: 8 × HHHL PCIe 5.0 x16 + 1 × FHHL PCIe 5.0 x16
Ethernet: 2 × 1GbE RJ45
Management: IPMI; ASPEED AST2600 BMC
Power Supply: 6+2 CRPS, 80 PLUS Titanium
Rated Power Output: Approximately 3,000W class, depending on AC input
Form Factor: 2U Rackmount
