- Overview
Overview

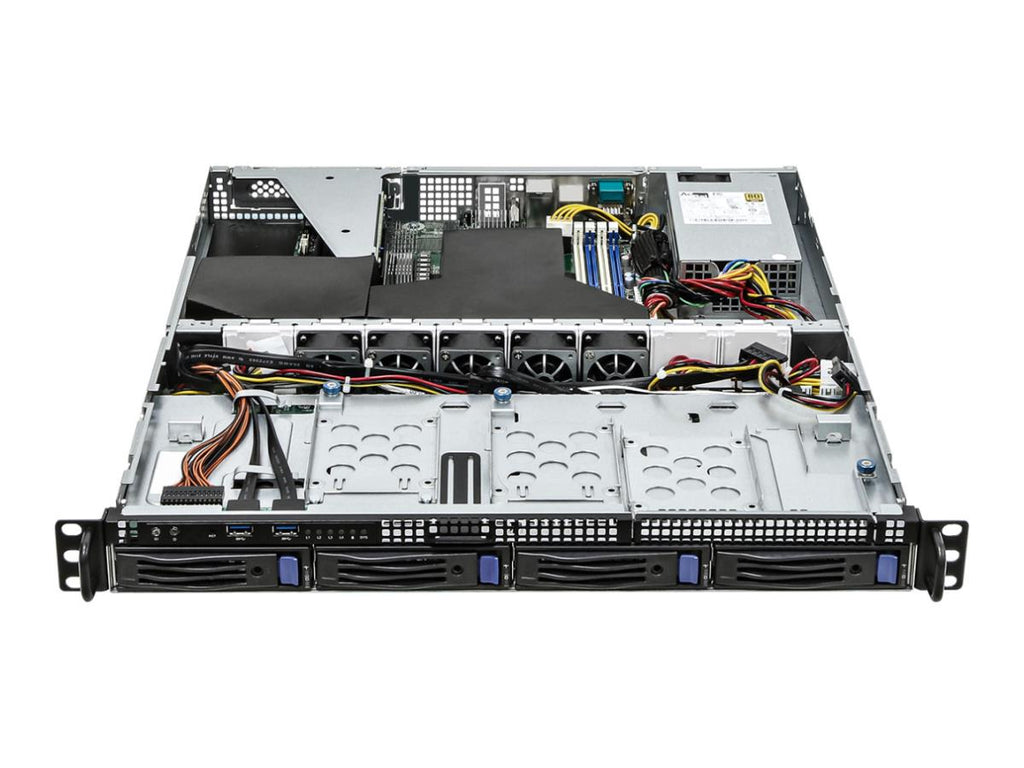

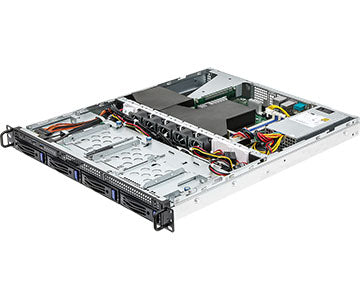

ASRock 1U4LW-X570 1U Ryzen 5000 server features AMD X570 chipset with support for up to 32 GB DDR4 RAM and four SATA 6 Gb/s drive bays for versatile storage. It includes PCIe 4.0 x4 expansion, Fast Ethernet connectivity, and a 400 Watt power supply in a compact 1U rackmount design.
Specifications
Model Number: 1U4LW-X570
Brand: ASRock
Alt Part Number(s): 1U4LW-X570
Product Type: Server
Technical Description
Brand: ASRock
Model: 1U4LW-X570
Form Factor: 1U Rackmount, GPU Server
Processor Type: Ryzen 5000 Series
Processor Manufacturer: AMD
Chipset Type: AMD X570
RAM Technology: DDR4
Total RAM Slots Qty: 4
Max Supported RAM Size: up to 32 GB
Hard Drive Interface Type: SATA 6 Gb/s
Hard Drive Bays Qty: 4
Storage Controller Type: PCI Express 4.0 x4; SATA 6 Gb/s
Data Link Protocol: Fast Ethernet
Power Device Type: Power Supply
Power Provided (W): 400 Watt
Power Voltage Required: AC 100-240V, 50-60Hz
Interfaces & Connections: DB15; DB9; USB 3.2 Gen1 Type-A; RJ45
Expansion Slots Total (Free): Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4; Supports PCIe3.0 x8 when using AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics; Supports PCIe3.0 x16 when using AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics
Width: 533.4 mm
Depth: 482.6 mm
Height: 44.4 mm
Features: Single Socket AM4 PGA 1331; Remote management (IPMI)
EPEAT Level: Not Included
Energy Star Compliant: Not Included
Climate Savers Compliant: Not Included
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
