ASRock 1U4LW-X470 RPSU 1U AMD Ryzen 16-Core 32GB Barebone Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

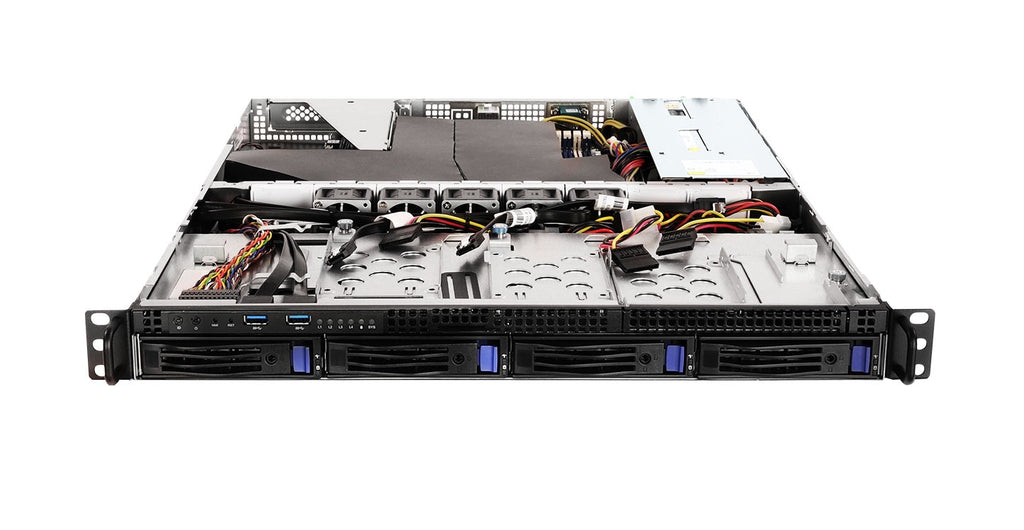

The ASRock Rack 1U4LW-X470 RPSU is a 1U rackmount barebone server system featuring a redundant power supply unit (RPSU). It is built on the AMD X470 chipset and is designed to support AMD AM4 Socket Ryzen Series processors, including 2nd and 3rd generation models
Specifications
Model Number: 1U4LW-X470 RPSU
Brand: ASRock
Alt Part Number(s): 1U4LW-X470 RPSU
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U4LW-X470 RPSU
Processor Type: AMD Ryzen PRO 3000 and 2000 Series
Processor Core: 16 Core/32 Thread
Processor Power: Up to 105W
Processor Socket: AM4 PGA 1331
Motherboard: X470D4U
Chipset Type: AMD X470
Graphics Controller: ASPEED AST2500 BMC
Rear I/O Ports: 2 × USB 3.2 Gen1 (Type-A), 1 × Dedicated IPMI LAN (management port), 1 x VGA (D-Sub), 1 × Serial port, 1 × UID button with LED
Front I/O Ports: 2 x USB 3.0 ports
Networking: 2 × RJ45 LAN (Gigabit Ethernet)
RAID Levels: 0, 1, 10
Number of Drive Bays: 4 × SATA 3.5" hot-swap bays (front), 2/3 × internal 2.5" SATA bays, M.2 slots (NVMe/SATA)
Expansion Slots: 1 PCIe 3.0 x16 slot (splittable), 1 PCIe 3.0 x8 slot, and 1 PCIe 3.0 x4 slot
Memory Supported: Up to 128GB DDR4 ECC/UDIMM
Memory Size: ECC/UDIMM: 32GB, 16GB, 8GB
Memory Technology: DDR4
Memory Speed: ECC/UDIMM: 3200/2933/2666/2400/2133 MHz
Memory Slots: 4 × DDR4 DIMM slots
Power Supply: 300W 1+1 Redundant PSU, 80 Plus Gold
System Cooling: 5x40x28mm PWM Easy-Swap Fans
Form Factor: 1U Rackmount
