ASRock 1U4LW-C262/2L2T 1U Intel Xeon 8-Core 128GB Barebone Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview

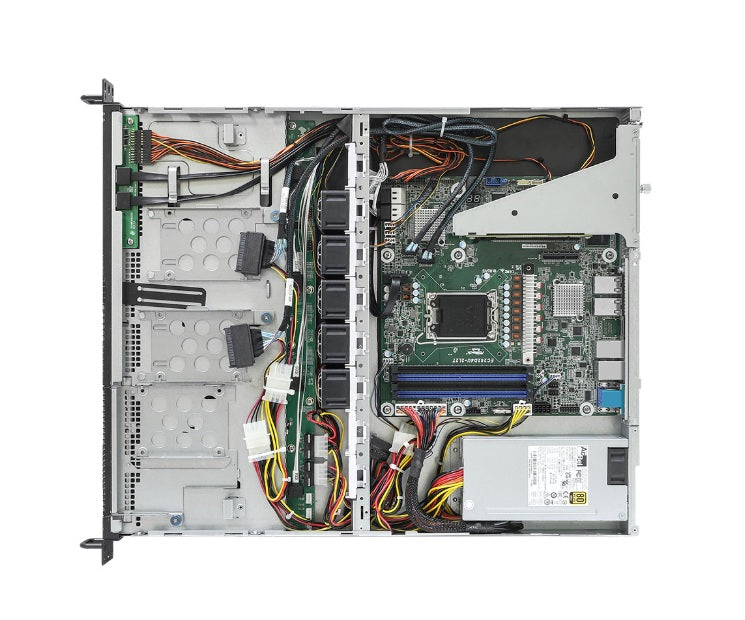

The ASRock Rack 1U4LW-C262/2L2T is a 1U rackmount server barebone built on the EC262D4U-2L2T motherboard. Designed for modern data centres and SMB applications, it leverages the Intel C262 chipset to support the Intel Xeon E-2400 series and 6300-series processors on the LGA 1700 socket.
Specifications
Model Number: 1U4LW-C262/2L2T
Brand: ASRock
Alt Part Number(s): 1U4LW-C262/2L2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U4LW-C262/2L2T
Processor Type: Intel Xeon 6300-series, Xeon E-2400 series
Processor Socket: Single Socket LGA 1700
Processor Core: 8-Core/16 Threads
Processor Power: up to 95W (TDP)
Chipset Type: Intel C262
Motherboard: EC262D4U-2L2T
Networking: 2×10GbE + 2×1GbE + 1× IPMI management port
Drive Bays: 4 Hot-swap 3.5" SATA drive bays, 2 fixed 2.5" NVMe (PCIe4.0 x4) drive bays
Graphics Controller: ASPEED AST2600
Memory Supported: 32GB
Memory Speed: 400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
Memory Technology: DDR5 ECC UDIMM
Memory Channels: 2‑Channels
Memory Slots: 4 x DIMM slots
Expansion Slots: 1 FHHL PCIe5.0 x16
Cooling: 5 PWM Easy-swap 40x28 mm fans
Power Supply: Single fixed PSU 400W 80-PLUS Gold
Form Factor: 1U Rackmount
Height: 21"
Width: 16.9"
Depth: 1.7"
