- Overview

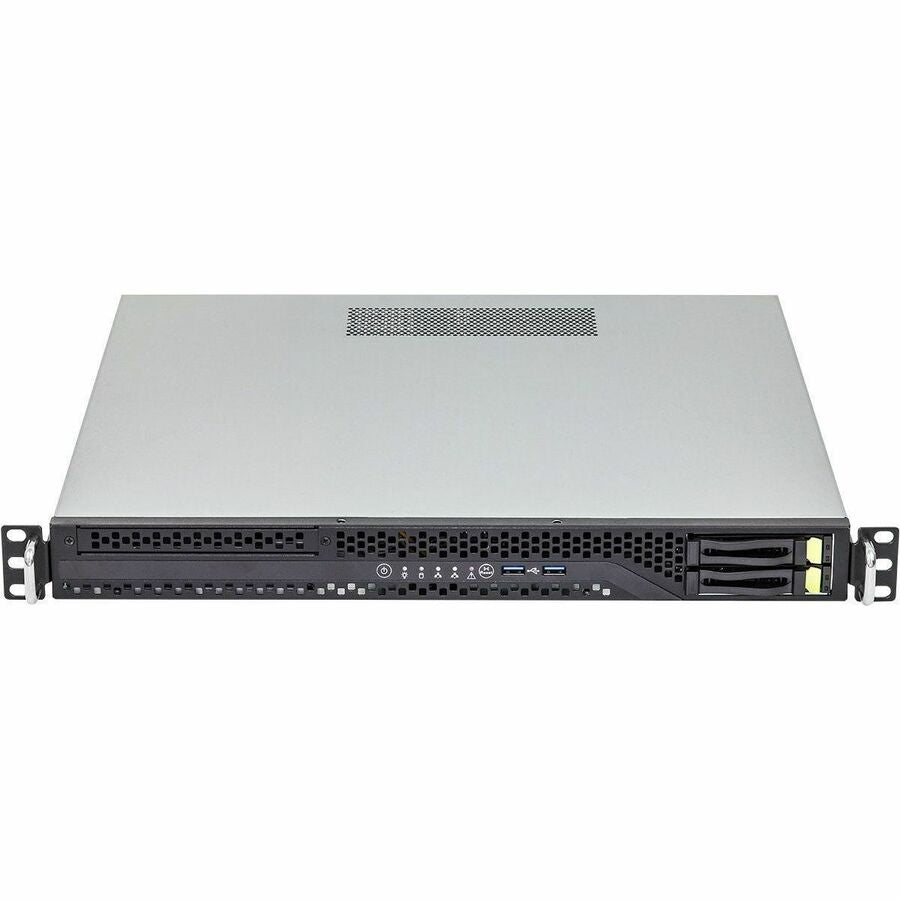

The ASRock Rack 1U2E-X570 is a compact 1U rackmount server designed for high-performance computing, particularly optimized for the AMD Ryzen™ 5000 and 3000 series desktop processors.
- 1U Rackmount with 1, 80-PLUS Gold, 315W PSU
- Supports AMD Ryzen 5000 Series Desktop Processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/ non-ECC UDIMM
- 2 Hot-swap 2.5'' NVMe (PCIe4.0 x4)/SATA drive bays
- 1 fixed 3.5'' SATA drive bay or 1 Slim ODD
- Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- 2 RJ45 (1GbE) by Intel®i210
- VGA, HDMI
- Remote Management (IPMI)
Product Specification:
| Product Type: Barebone System |
| Manufacturer Part Number: 1U2E-X570 |
| Manufacturer Website Address: https://www.asrockrack.com/index.asp |
| Maximum Memory Supported: 32 GB |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock Rack Inc |
| Product Model: 1U2E-X570 |
| Product Name: 1U2E-X570 Barebone System |
| Processor Supported: Ryzen |
| Controller Type: Serial ATA/600,NVMe |
| Processor Socket: Socket AM4 |
| Rack Height: 1U |
| Brand Name: ASRock Rack |
| Memory Technology: DDR4 SDRAM |
| Memory Standard: DDR4-3200/PC4-25600 |
| 64 Bit Processing: Yes |
| Chipset Manufacturer: AMD |
| Chipset Model: X570 |
| Graphics Controller Model: AST2500 |
| Number Of Power Supplies Installed: 1 |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Number Of Processors Supported: 1 |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 3 |
| Number Of 3.5" Bays: 1 |
| Number Of Network (Rj 45) Ports: 4 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 315 W |
| Total Number Of Usb Ports: 4 |
| Number Of Usb 3.0 Ports: 2 |
| Number Of Serial Ports: 1 |
| Number Of Vga Ports: 1 |
| Total Number Of Expansion Slots: 2 |
| Number Of M.2 Interfaces: 2 |
| Hdmi (Rear): Yes |
| Number Of Usb 3.2 Gen 2 Ports: 2 |
| Total Number Of Memory Slots: 4 |
| Feature1: 1U Rackmount with 1, 80-PLUS Gold, 315W PSU |
| Feature2: Supports AMD Ryzen 5000 Series Desktop Processors |
| Feature3: 4 DIMM slots (2DPC), supports DDR4 ECC/ non-ECC UDIMM |
| Feature4: 2 Hot-swap 2.5'' NVMe (PCIe4.0 x4)/SATA drive bays |
| Feature5: 1 fixed 3.5'' SATA drive bay or 1 Slim ODD |
| Feature6: Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s) |
| Feature7: 2 RJ45 (1GbE) by Intel®i210 |
| Feature8: VGA, HDMI |
| Feature9: Remote Management (IPMI) |
