Description
Overview

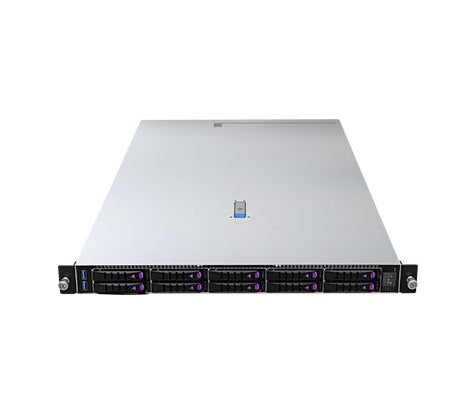

ASRock 1U10E-ICX2 Xeon P+ S4189 Intel C621A 1U Rack-mountable Server.
Specifications
Model Number: 1U10E-ICX2
Brand: ASRock
Alt Part Number(s): 1U10E-ICX2
Product Type: Server
Technical Description
Brand: ASRock
Model Number: 1U10E-ICX2
Form Factor: 1U Rackmount
Supported Motherboard: SP2C621D32LM3
Buttons: Power, Reset
LEDs: Power, HDD
I/O Ports: 2× USB 3.2 Gen1 Type-A
Front Drive Bays: 10× hot-swap 2.5" NVMe (PCIe 4.0 x4)
Front Backplane: 10-port NVMe passive backplane
Internal Storage: 1× M-Key slot (PCIe 3.0 x4 or SATA 6Gb/s), supports 2280 / 2260 / 2242
Power Supply Type: 1+1 CRPS Redundant
Power Output: 1600W
AC Input: 100–240V, 47–63Hz
Cooling Fans: 8× hot-swap 40 x 56 mm PWM fans
CPU Support: 3rd Gen Intel Xeon Scalable
CPU Socket: Dual Socket P+ (LGA 4189)
Chipset: Intel C621A
DIMM Slots: 16+16 (2DPC)
Supported Memory Types: DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel Optane Persistent Memory 200 Series
Max DIMM Capacity:
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
Max Memory Frequency: 3200 MHz
Memory Voltage: 1.2V
PCIe Slots: 2× FHHL PCIe 4.0 x16 (CPU1 & CPU2)
OCP NIC Slot: 1× OCP NIC 3.0 (PCIe 4.0 x16, CPU1)
BMC Controller: ASPEED AST2500
IPMI LAN: 1× Realtek RTL8211E (Dedicated Management)
Graphics Controller: ASPEED AST2500
VRAM: DDR4 16MB
UID Button with LED: 1
VGA Port: 1× DB15
Serial Port: 1× DB9
USB 3.2 Gen1 Ports: 2× Type-A
RJ45: 1× Dedicated IPMI
BIOS Type: 256Mb SPI Flash ROM
BIOS Features: AMI UEFI BIOS
Temperature Monitoring: CPU, PCH, MB, Card Side
Fan Monitoring: CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Auto Adjust by CPU Temp)
Multi-Speed Fan Control
Voltage Monitoring: CPU1_PVCCIN, CPU2_PVCCIN, PVDDQ_ABCD, PVDDQ_EFGH, PVDDQ_IJKL, PVDDQ_MNOP, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB
Operating Temperature: 10°C – 35°C
Storage Temperature: -40°C – 70°C
Non-Operating Humidity: 20% – 90% (Non-condensing)
