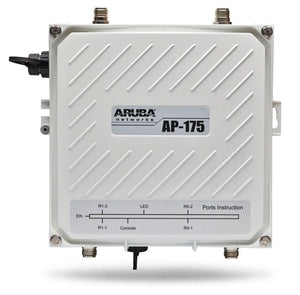

Aruba AP-175 300Mbps Outdoor Multifunction Wireless Access Point

Overview

The multifunction Aruba AP-175 is an affordable, fully hardened outdoor 802.11n access point that provides maximum deployment flexibility in high-density campuses, storage yards, warehouses, container/transportation facilities, extreme industrial production areas and other harsh environments. The high-performance AP-175 delivers wire-like performance at data rates up to 300 Mbps per radio. The AP-175 features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with quad antenna interfaces. With wall and mast mounting options, the AP-175 is built to provide years of trouble-free operation.



Specifications

Mfr Part Number:  AP-175

Brand:  Aruba Networks

Model Number:  AP-175

Type:  Wireless Access Point (WAP)



Technical Description

Brand:  Aruba Networks

Model:  AP-175

TAA Compliant:  Yes

Compliant Standards:  VCCI, EN 60950, NOM, IEC 60950, IEC 60601-1-1, IEC 60601-1-2, UL 60950, CB, EN 300.328, AS/NZS 4771, CCC, IC, MIC, AS/NZS 3548, FCC, R&TTE, KCC, EN 301.893, ANATEL, cTUVus, IP67, IP66, FIPS, LVD, SRRC

Power Device:  External Power Adapter

Power Consumption Operational:  18 Watt

Voltage Required:  AC 120/230 V

Frequency Band:  2.4 GHz, 5 GHz

Line Coding Format:  CCK, 64 QAM, BPSK, QPSK, 16 QAM

Form Factor:  External

Data Transfer Rate:  300 Mbps

Connectivity Technology:  Wireless

Spread Spectrum Method:  OFDM, DSSS

Compliant Standards:  IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n

Data Link Protocol:  IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n

Frequency Band:  2.4 GHz, 5 GHz

Device Type:  Wireless access point

Width:  8.9 in

Height:  4.1 in

Depth:  8.9 in

Ruggedized Design:  Outdoor

Max Operating Temperature:  140 °F

Min Operating Temperature:  -22 °F

Humidity Range Operating:  5 - 95% (non-condensing)



Features

Auto-sensing per device

Auto-uplink (auto MDI/MDI-X)

DFS support

Wall mountable

Trusted Platform Module (TPM)

2T2R MIMO technology

Adaptive Radio Management (ARM)

Maximum Ratio Combining (MRC)

Dual-band 802.11n

Cyclic Delay Diversity (CDD)

Space Time Blocking Code (STBC)
