Description
Overview
Multifunctional 220 series wireless APs deliver gigabit Wi-Fi performance to 802.11ac mobile devices. Integrated Aruba ClientMatch technology ensures consistently high performance across the WLAN infrastructure. With a maximum data rate of 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, 220 series APs are three-times faster than 802.11n APs and provide performance similar to a wired connection. The 220 series APs include ClientMatch technology, which eliminates sticky clients by continuously gathering session performance metrics from mobile devices. This information is then used to steer each mobile device to the best AP and radio on the WLAN. Proactive and deterministic, ClientMatch dynamically optimizes Wi-Fi client performance as users roam and RF conditions change. If a mobile device moves out of range of an AP or RF interference impedes performance, ClientMatch automatically steers it to a better AP. With ClientMatch, 220 series APs load web pages faster, deliver video streams with improved quality and support high densities of mobile devices. An 802.11ac network without ClientMatch performs no different than an 802.11n WLAN. The 220 series APs additionally support priority handling and policy enforcement for individual Microsoft Lync media on the same device, including encrypted videoconferencing, voice, chat and desktop sharing.
Specifications

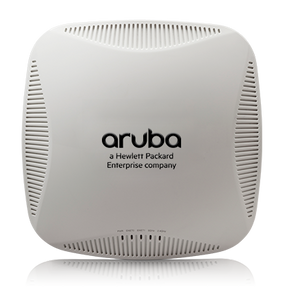

Model Number: IAP-225-US
Brand: Aruba Instant
Alt. Part Number(s): APIN0225
Product Type: Wireless Access Point (WAP)
Technical Description
Brand: Aruba Instant
Model: IAP-225-US
Compliant Standards: IEEE 802.11a , IEEE 802.11ac , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.3af , IEEE 802.3at , IEEE 802.3az , Wi-Fi CERTIFIED
Data Link Protocol: IEEE 802.11a , IEEE 802.11ac , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n
Data Transfer Rate: 1.3 Gbps
Form Factor: External
Power Over Ethernet (PoE): PoE+
Spread Spectrum Method: DSSS , OFDM
Status Indicators: Link/activity , Power , System , Wireless
Type: Wireless access point
Wi-Fi Bands: 2.4 GHz , 5 GHz
Wireless Protocol: 802.11a/b/g/n/ac
Antenna Form Factor: Internal
Antenna Qty: 6
Directivity: Omni-directional
Depth: 8 in
Height: 2.1 in
Width: 8 in
Features
3T3R MIMO technology
Advanced Cellular Coexistence (ACC)
Auto-sensing per device
Auto-uplink (auto MDI/MDI-X)
Broadcom TurboQAM technology
ClientMatch
Cyclic Delay Diversity (CDD)
Dual-band 802.11n
Low Density Parity Check (LDPC)
Maximum Ratio Combining (MRC)
PoE+
Power over Ethernet (PoE)
Reset button
Security lock slot (cable lock sold separately)
Space Time Blocking Code (STBC)
Transmit Beam-forming (TxBF) ready
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
